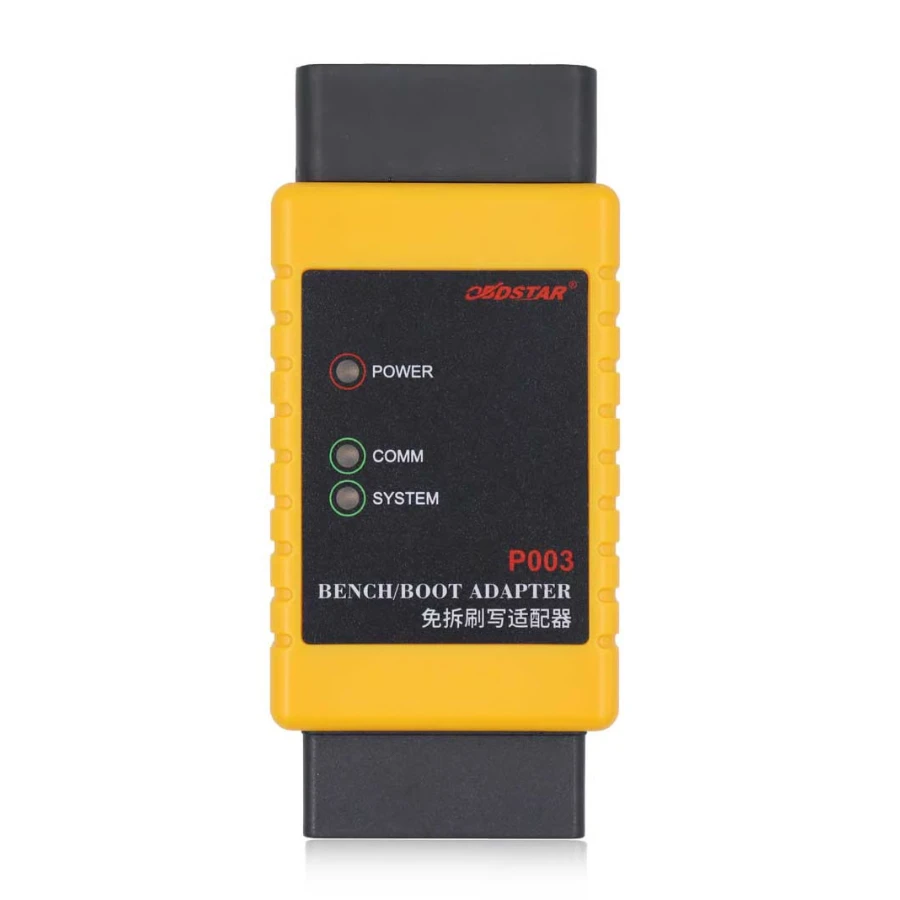

The OBDSTAR P003 Bench/Boot Adapter Kit is a professional-grade hardware expansion designed for automotive locksmiths and technicians. Working exclusively with OBDSTAR IMMO series tablets, this kit enables high-performance reading and writing of ECU data without the need for complex PC-based software.

The primary purpose of the P003 is to facilitate CS (Component Security) and PIN code extraction, which are critical for programming new keys or replacing immobilizer-related modules. It supports both Bench mode (programming without opening the ECU) and Boot mode (programming via internal circuit points), offering maximum flexibility for diverse repair scenarios.

Core Functions & Advantages

• IMMO Data Calculation: Expertly reads CS, PinCode, and MAC values for advanced security programming.

• Dual Connection Modes: Provides stable communication through both BENCH and BOOT methods for deep-level ECU access.

• Comprehensive Data Access: Supports reading and writing of EEPROM and Flash data across a vast list of modern ECUs.

• TCM Cloning: Capable of reading and writing TCM EEPROM and Flash for T87A and 6HP transmission modules.

• Enhanced Decryption: The P003+ (upgraded version) uses a higher frequency clock to support modern decryption on ME9.0 and MED9 series.

Model & Brand Support List

The OBDSTAR P003 kit is specifically developed for high-tier manufacturers using Bosch and Continental engine management systems.

1. Supported Manufacturers

The following brands are currently supported for ECU data reading and IMMO calculation:

• VAG Group: Audi, Volkswagen (VW), Skoda, SEAT, Bentley, Lamborghini.

• European: Peugeot, Citroen, DS, Porsche, Opel/Vauxhall.

• Global/Asian: Mahindra (BS-6), Toyota (Proace), Ford (All Keys Lost support).

2. Supported ECU Types

Host Device Compatibility

The P003/P003+ kit must be used in conjunction with one of the following OBDSTAR hosts:

• X300 DP / X300 DP PLUS

• X300 PRO4 / Key Master 5

• DC706 ECU Tool

• Key Master DP / Key Master DP Plus
