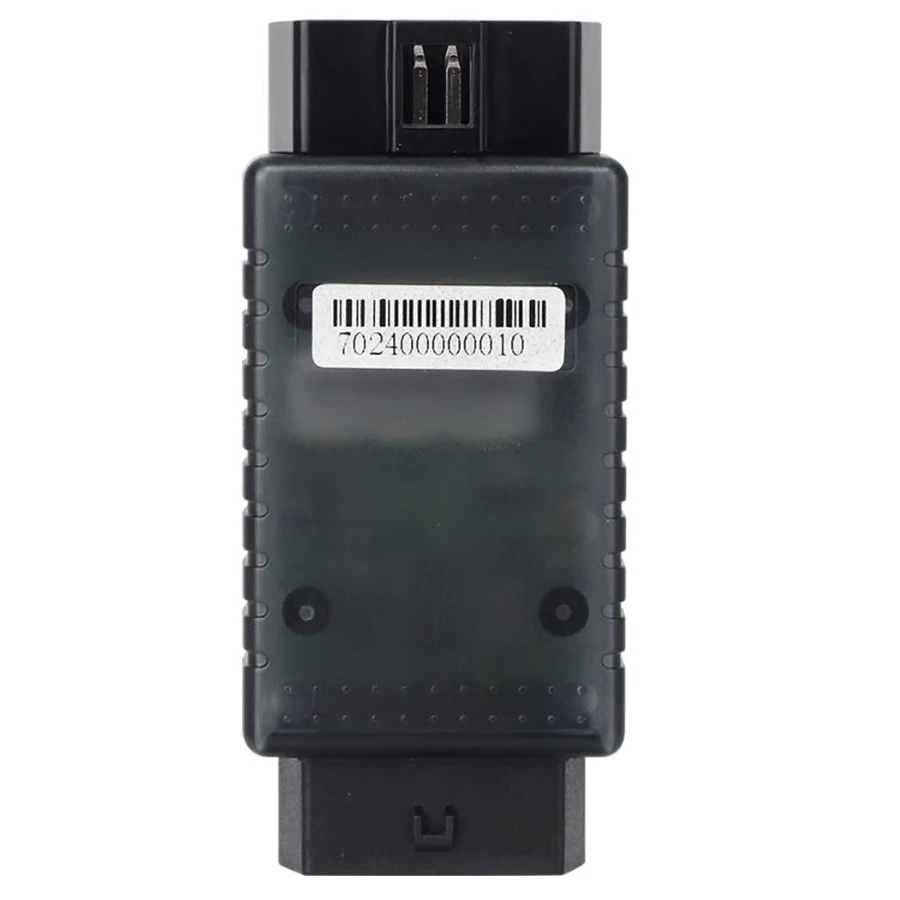

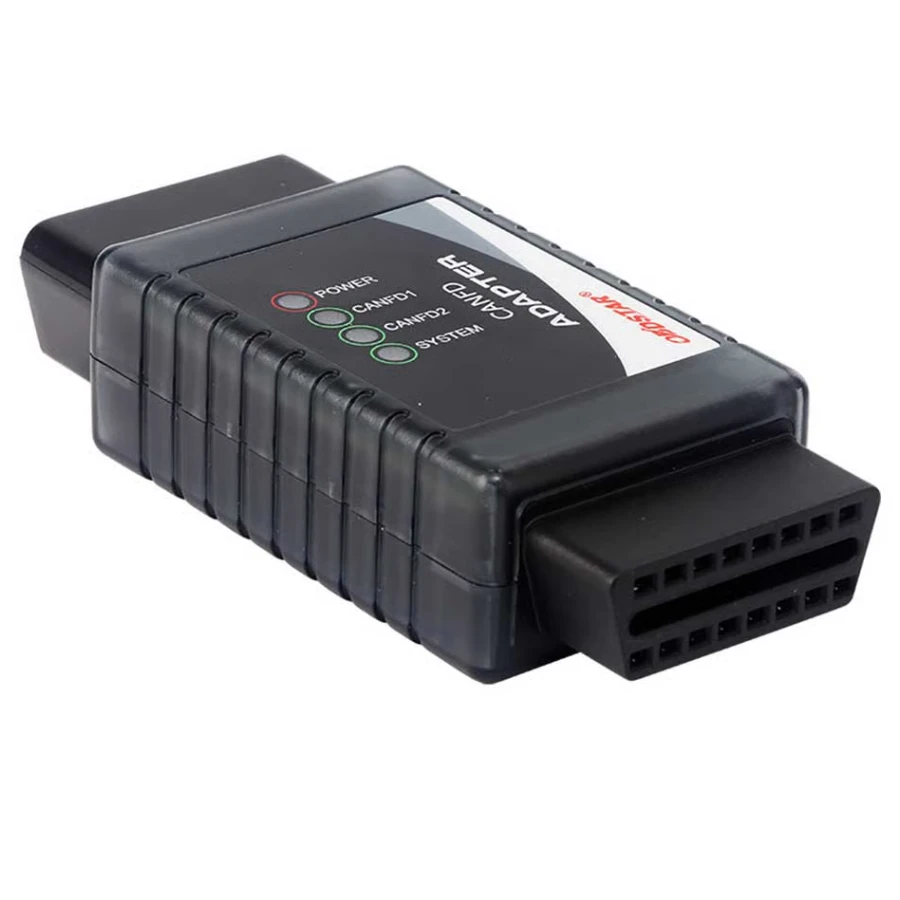

The OBDSTAR CAN FD Adapter is a critical hardware expansion designed to enable modern vehicle communication on your existing OBDSTAR tablets. As automotive manufacturers transition to the CAN FD (Controller Area Network Flexible Data-Rate) protocol to handle larger data packets and faster speeds, standard OBDII interfaces can no longer communicate with these newer systems.

This adapter bridges that gap, allowing locksmiths and technicians to perform key programming, cluster calibration, and ECU diagnostics on 2020+ models that utilize the CAN FD protocol. It is an essential addition for any professional using the X300 DP Plus (Key Master DP Plus) or X300 PRO4.

Core Functions and Features

• Protocol Enabling: Specifically designed to support the CAN FD protocol, which is required for the latest vehicle electronic architectures.

• High-Performance Hardware: Built with high-quality components to ensure stable data transmission and prevent communication timeouts during sensitive programming tasks.

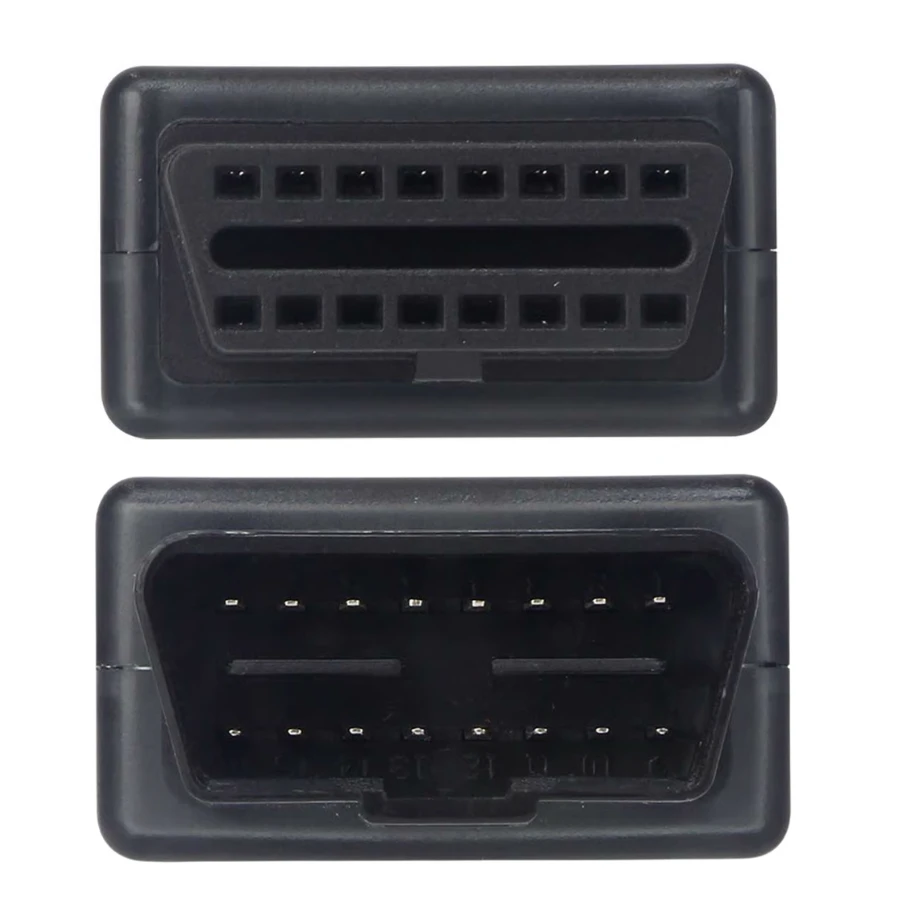

• Plug and Play: Connects directly between the vehicle’s OBDII port and the main diagnostic cable of your OBDSTAR tablet.

• Seamless Integration: Works natively with the device's software; no separate power supply or complex configuration is required.

Key Vehicle Support

This adapter is required for many 2020 and newer vehicles, most notably within the General Motors (GM) and Ford lineups:

• GM Models (2020+): Cadillac CT4/CT5, Buick Encore/Envision, Chevrolet Corvette, Silverado, and Tahoe.

• Ford Models: Various 2021+ models requiring high-speed data rates for secure immobilizer access.

• Other Brands: Increasingly required for newer Hyundai, Kia, and various European models as they adopt CAN FD architecture.

Quick User Manual: How to Connect

1. Preparation: Ensure your OBDSTAR tablet (X300 DP Plus or PRO4) is updated to the latest software version.

2. Hardware Connection: Plug the OBDSTAR CAN FD Adapter into the vehicle's OBDII port.

3. Cable Link: Connect the main diagnostic cable of your tablet to the female end of the CAN FD Adapter.

4. Software Selection: Turn the vehicle's ignition ON. On your tablet, select the vehicle manufacturer and model.

5. Automatic Detection: The software will recognize the adapter and initiate the high-speed CAN FD communication link automatically.

6. Operation: Proceed with key programming or diagnostic functions as usual.
