Overview

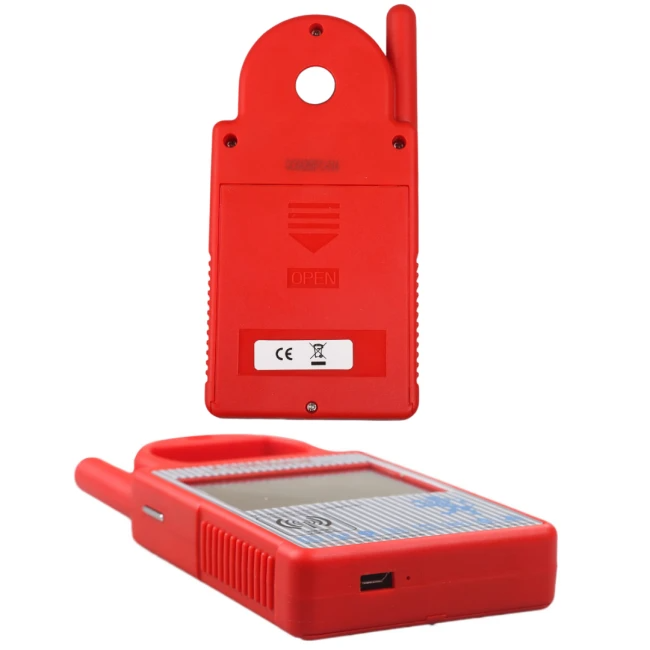

The Smart CN900 Mini is a professional-grade, handheld transponder key programmer designed to replace the bulky original CN900. It is a portable, powerful solution for locksmiths and automotive technicians, allowing for seamless key cloning and chip identification without the need for external cloner boxes.

Equipped with a built-in battery and a high-resolution touch screen, the CN900 Mini supports online updates and features advanced connectivity via WiFi and Bluetooth 4.0.

Core Capabilities

• Comprehensive Chip Reading: Identifies codes for 11, 12, 13, 33, T5, 40, 41, 42, 44, 45, 46, 48, 4C, 4D, 8C, and 8E chips with detailed formatting.

• Advanced Toyota Support: Directly identifies and copies Toyota "G" chips (72G) and Smart Keys. It can also perform Toyota Smart Card writing via OBD (supporting types 3370, 5290, A433, and F433).

• Effortless Cloning: Directly copies 4C and 4D chips using specialized CN1 and CN2 chips.

• Security & Unlocking: Capable of unlocking most ID48 chips and identifying/unlocking specialized crypto chips.

• PIN Calculation: Built-in PIN code calculation for Hyundai and Kia (up to 2007) using the last 6 digits of the VIN.

Key Features & Highlights

• Portability: Handheld design with a long-standby internal battery—no power adapter required during use.

• Frequency Coverage: Supports RFID 125KHZ, 134.2KHZ, and 13MHZ.

• Remote Testing: RF data reception and transmission (27-900MHZ) to test and simulate remote controls.

• Smart Updates: Fast boot-up (10 seconds) and easy online firmware updates via USB 2.0 or WiFi.

• Connectivity: Integrated Bluetooth 4.0 and WiFi for modern workflows.

Technical Specifications

What’s in the Box?

• 1 x CN900 Mini Main Unit

• 1 x USB Cable / Power Interface

• Note: Specific transponder chips sold separately.

Why Choose the CN900 Mini?

Unlike the older desktop versions, the CN900 Mini eliminates the need for external decoders (4D/46/G Decoder Boxes), making your mobile locksmithing workflow faster and more efficient. Whether you are editing EEPROM data for a Toyota 4C system or cloning ID46 chips for a Nissan or Peugeot, the CN900 Mini provides a stable, user-friendly interface to get the job done in seconds.
