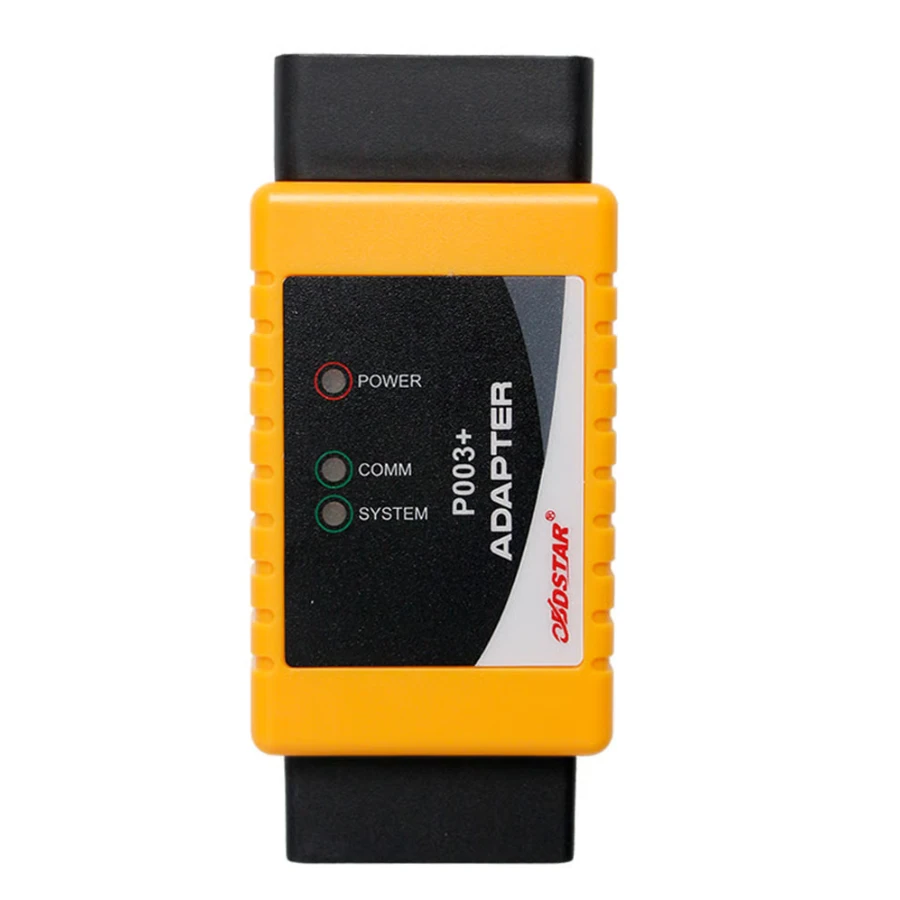

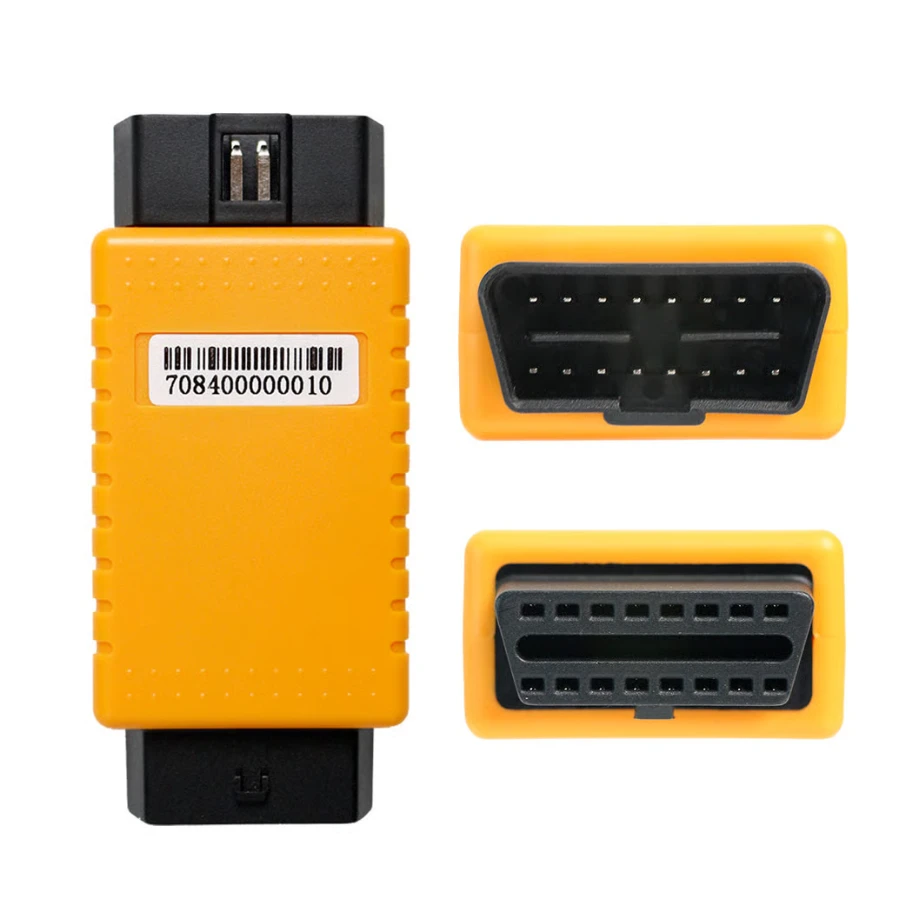

The OBDSTAR P003+ Adapter Kit is an advanced hardware solution designed for reading and writing ECU data in Bench or Boot mode. As the upgraded successor to the standard P003, the P003+ features a higher frequency clock and improved power management (3x 12V connections) to support modern, high-decryption ECUs.

Core Functions & Capabilities

• ECU Data Access: Enables technicians to read and write EEPROM and Flash data, as well as calculate IMMO data like CS, PIN codes, and MAC values.

• IMMO Programming Support: Facilitates specialized key programming tasks including Toyota 8A (non-smart key) All Keys Lost, Ford/Lincoln/Mustang All Keys Lost (alarm active), and motorcycle proximity key programming for Honda, Suzuki, and Yamaha.

• TCM Cloning: Supports reading and writing for Transmission Control Modules (TCM), specifically the T87A and 6HP units.

• Integrated P002 Functionality: Inherits all functions from the P002 adapter, providing a versatile all-in-one hardware interface.

Comprehensive Model & Brand Coverage

The P003+ Kit works with a wide range of brands, specializing in Bosch and Continental systems:

Supported ECU Types

The P003+ is specifically required for advanced decryption on models such as:

• Bosch: ME9.0, MED9.1, MED9.6.1, MED9.5.10, EDC16C39, EDC16CP35, EDC16C8, MD1CS018, and the entire MED17XX/EDC17XX series.

• Continental: PCR 2.1 (TC1796) commonly found in 1.6L Diesel VAG vehicles.

Host Device Compatibility

This adapter is not a standalone tool and must be used with an OBDSTAR IMMO Series tablet:

• X300 DP / X300 DP PLUS

• DC706 ECU Tool

• Key Master DP / Key Master G3

• X300 PRO4 / D800 / MS80
