Key Programming & IMMO Functions

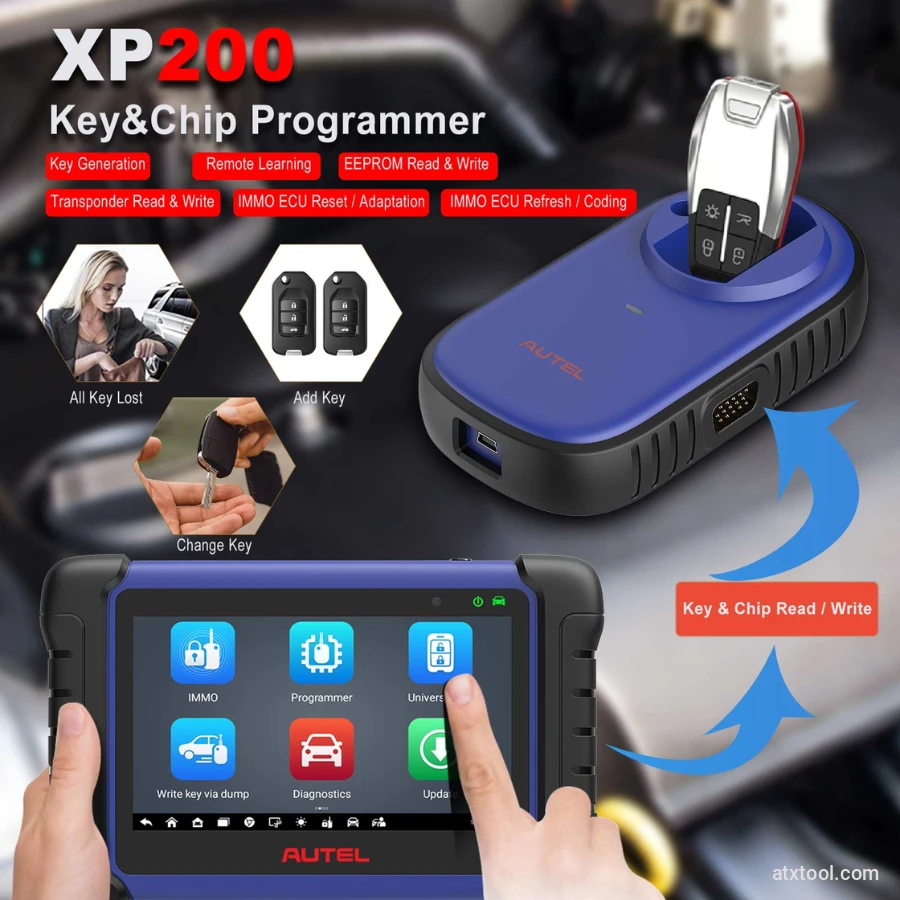

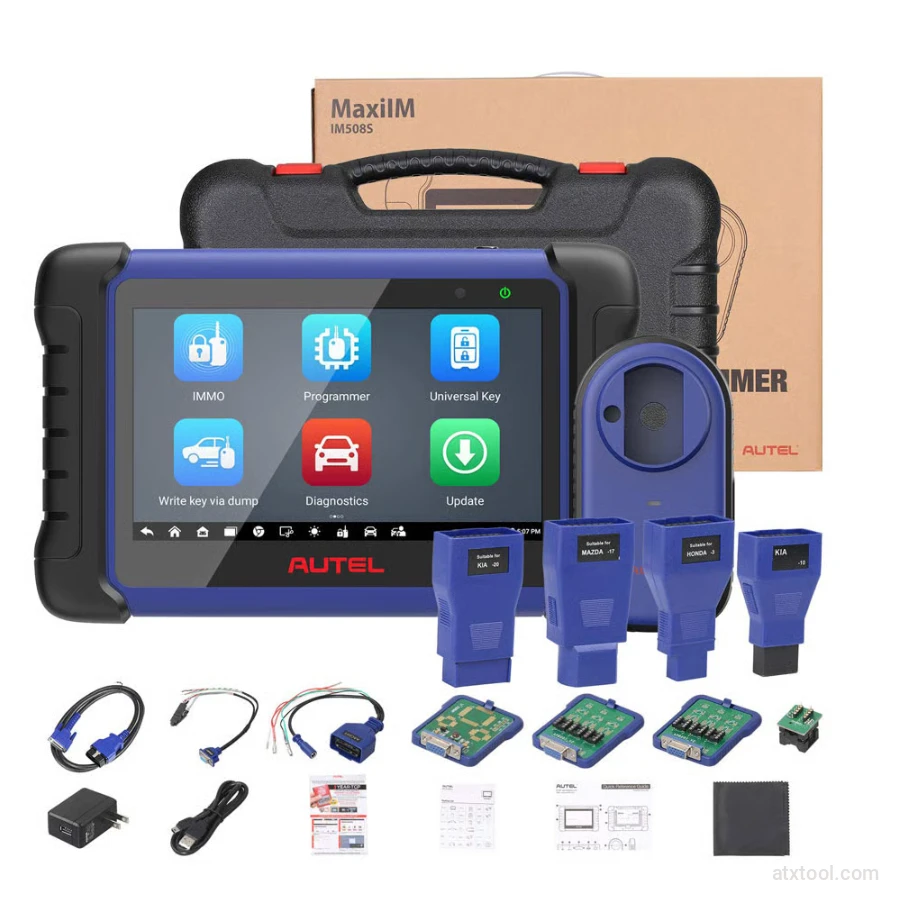

Equipped with the XP200 Key Programmer, the IM508S provides extraordinary service for anti-theft systems

• Dual Operation Modes: Smart Mode for guided/automated key learning and Expert Mode for advanced manual programming
• Key Generation: Fast key and remote learning, including generating Autel IKeys
• All Keys Lost (AKL): Support for Read PIN/CS in various vehicle makes
• IMMO ECU Operations: Reset, adaptation, refresh, and coding of the immobilizer ECU.
• Data Management: Backup and restore IMMO data for safety and recovery
• Advanced Coverage: * BMW: All keys lost and key addition for BDC-equipped F-Series (OBD II)
• VAG: MQB NEC35XX instrument cluster reading/writing and data decodin
• Toyota/Lexus: PIN-free smart key addition and AKL (2022-2023 models)

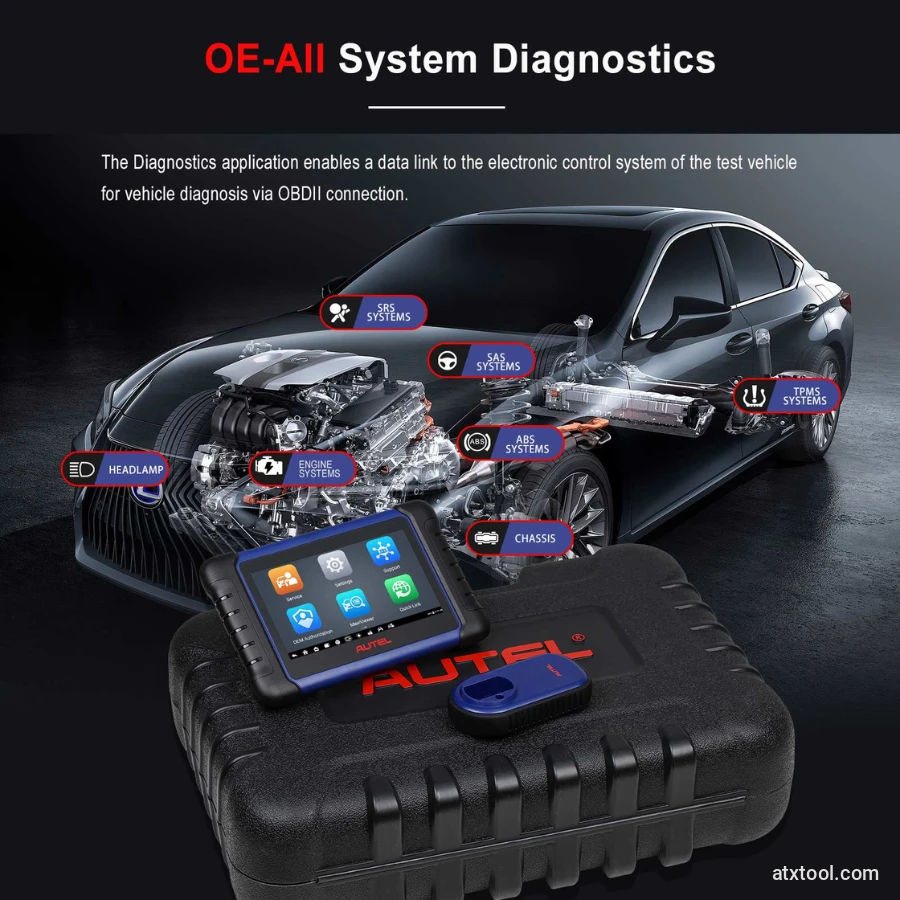

OE-Level Diagnostics & Maintenance

The IM508S offers the same diagnostic depth as the Autel MK808 series.

• Full System Diagnostics: OE-level scanning for over 80 US, Asian, and European makes (1996 and newer)

  Bi-Directional Control (Active Tests): Send commands to actuators (ABS, windows, wipers) to pinpoint faulty parts

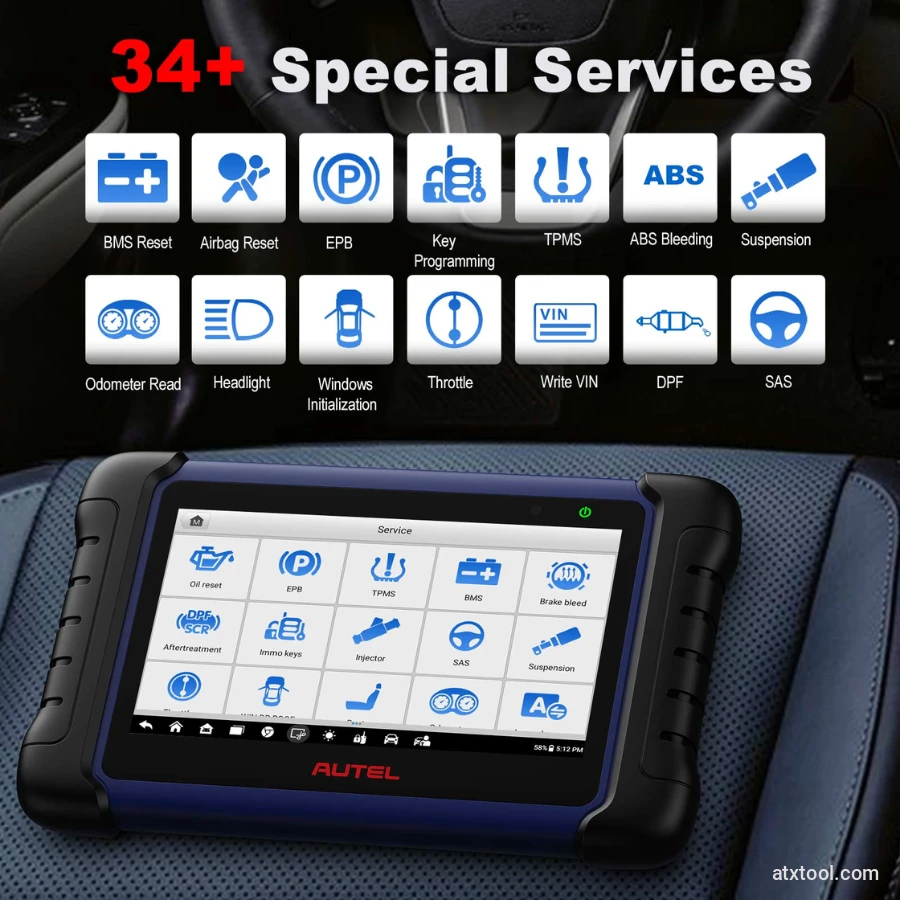

  28+ Maintenance Services: Includes Oil Reset, EPB, DPF, SAS, BMS, TPMS Relearn, Injector Coding, and Brake Bleed

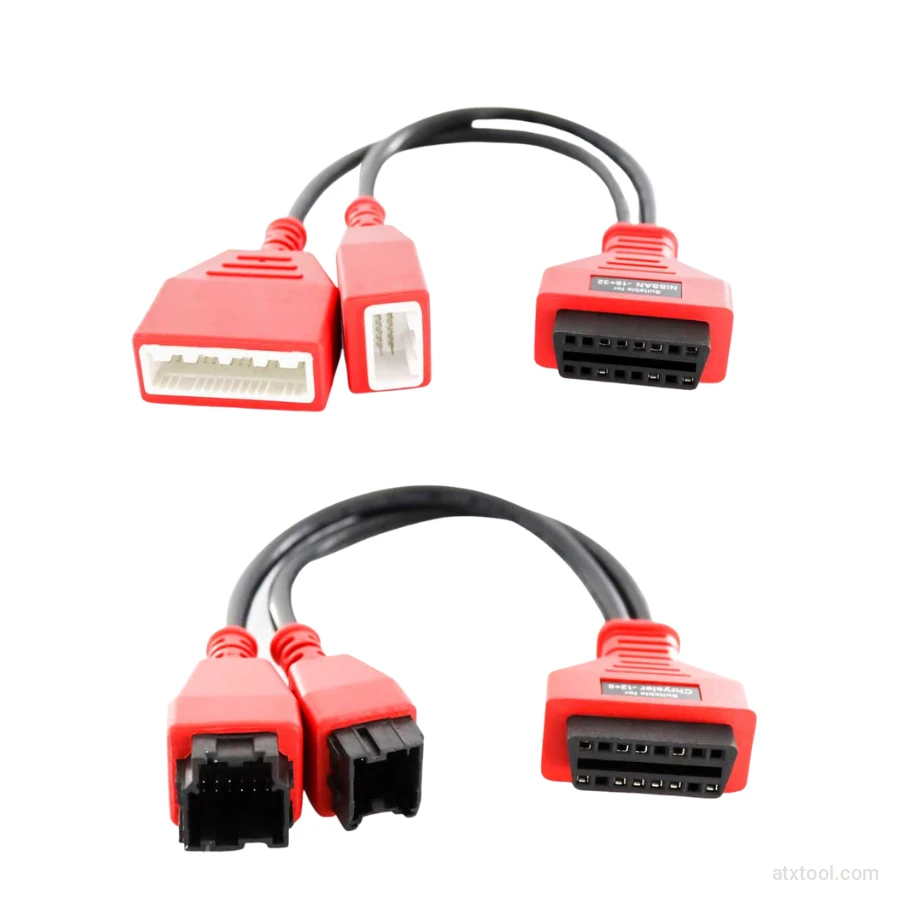

  FCA AutoAuth: Access Secure Gateway (SGW) for 2018+ Chrysler, Dodge, and Jeep vehicles

  Cloud Report Management: Upload and share diagnostic reports via QR codes, email, or text




Technical Specifications

• • Display: 7-inch LCD capacitive touchscreen (1024x600 resolution)

    Battery: 5000 mAh lithium-polymer (approx. 4.5 hours continuous use)

    Connectivity: Mini USB 2.0, USB 2.0, Wi-Fi, Micro SD card (up to 64GB)

    Protocols Supported: ISO9141-2, ISO14230-2, ISO15765, K/L-Line, CANFD (with adapter), and more.
