The Universal OBD2 16-Pin Jumper Tester is a versatile and essential tool for automotive technicians, electronic engineers, and DIY enthusiasts. This cable serves as a professional breakout interface, allowing you to manually access and test individual communication lines from a vehicle's OBD2 port.

Featuring a high-quality 16-pin female connector, the cable is designed for deep diagnostic analysis of both K-Line and CAN-Bus protocols. It is particularly useful for troubleshooting communication errors, identifying electronic faults, and performing bench-mode programming where a direct connection to specific pins is required. The pigtail design with color-coded wires provides a clear and organized way to "jump" or bridge signals without damaging the vehicle's original wiring harness.

Key Features & Technical Specifications

• Universal 16-Pin Interface: Fully wired female OBD2 connector compatible with all standard diagnostic tools.

• Dual Protocol Support: Optimized for both high-speed CAN-Line (Pins 6 & 14) and K-Line (Pin 7) communication testing.

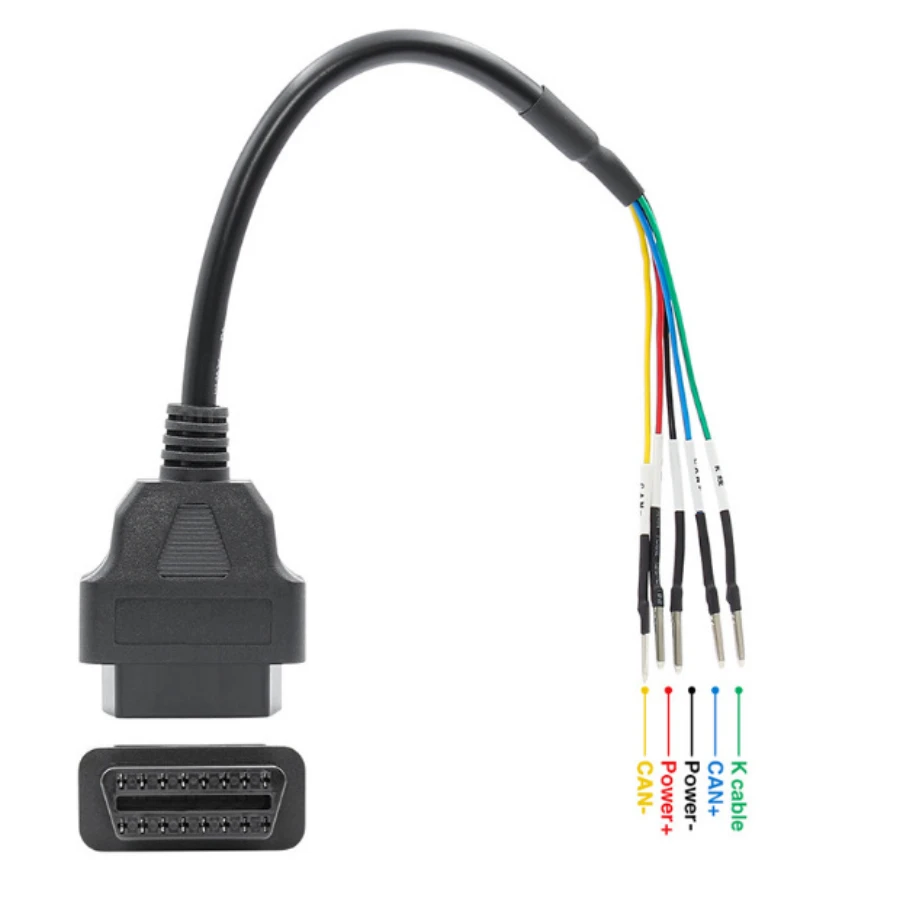

• Color-Coded Pigtails: Each wire is color-indexed for fast identification (Power, Ground, CAN+, CAN-, K-Line).

• DIY & Professional Use: Ideal for homemade diagnostic projects, ECU tuning, and fault detection in repair shops.

• High-Quality Materials: Built with flexible, heat-resistant PA66 material and tin-plated copper for superior conductivity and durability.

• Standard Compatibility: Works with 12V passenger cars and 24V heavy-duty vehicles.

Global Compatibility & Updates

This hardware is a Global Edition and can be used on any vehicle equipped with an OBD2/EOBD port in every country worldwide. As a high-quality physical jumper cable, it is a lifetime hardware tool that remains compatible with all future generations of OBD2 scanners and diagnostic software.

Professional Applications

• Communication Diagnostics: Quickly identify if the CAN or K-Line signals are reaching the diagnostic port.

• ECU Bench Programming: Use as a breakout cable to power up and program ECUs outside the vehicle.

• Fault Detection: Simplify the troubleshooting process for intermittent electronic errors.

• Tool Adaptation: Bridge specialized diagnostic equipment to standard car ports.
