RVG-10B Digital Manifold Gauge – 0.5%FS Accuracy, 88 Refrigerant Types

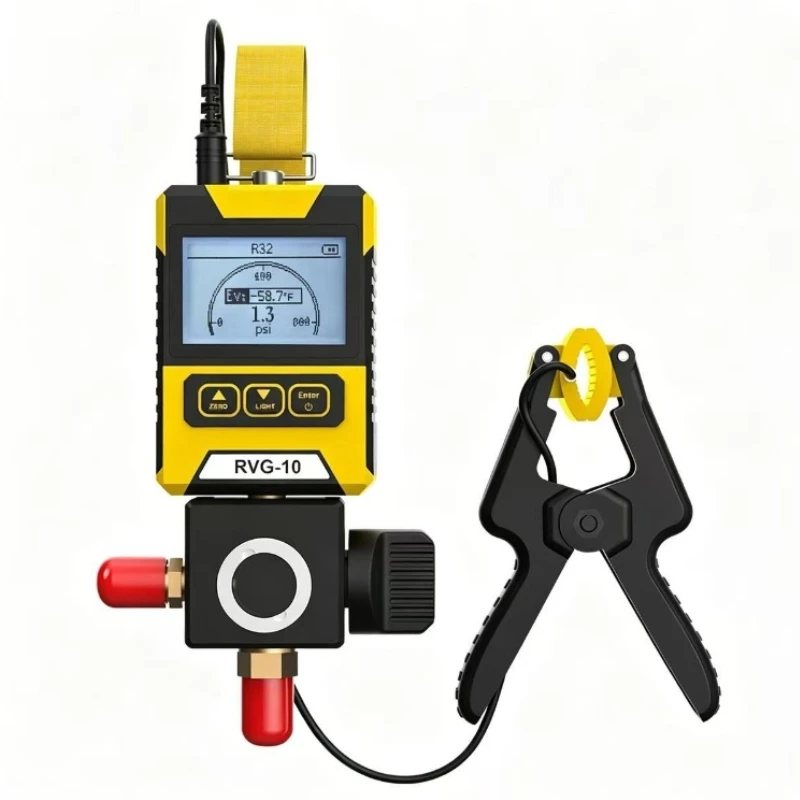

The RVG-10B Digital Manifold Gauge is a professional HVAC, refrigeration, and automotive AC service tool designed for accurate high- and low-pressure measurement. With ±0.5%FS pressure accuracy, temperature measurement, leak testing, and support for 88 refrigerant types, it is suitable for professional technicians and AC service applications.

The gauge supports multiple pressure units, including kPa, MPa, bar, psi, and kg/cm², as well as Celsius and Fahrenheit temperature readings. Its IP65 waterproof and dust-resistant design helps provide reliable performance in demanding workshop environments.

Key Features

• High- and low-pressure measurement
• Pressure accuracy up to ±0.5%FS
• Pressure range: -14.5 to 800 psi
• Supports 88 refrigerant types
• Temperature measurement from -50°C to 150°C / -58°F to 302°F
• Leak test function
• AC service and diagnostic functions
• ECG function as specified by the manufacturer
• Exhaust valve
• Waterproof and dust-resistant IP65 housing
• Multiple pressure units: kPa, MPa, bar, psi, kg/cm²
• Temperature units: °C and °F
• Compact and practical design for professional AC service

Technical Specifications

Suitable Applications

The RVG-10B is suitable for automotive air-conditioning service, HVAC systems, refrigeration maintenance, refrigerant pressure testing, AC charging, leak testing, and professional workshop applications.

For technicians who need one digital gauge for different refrigerants and pressure measurement requirements, the RVG-10B provides multiple measurement functions in a compact professional tool.
