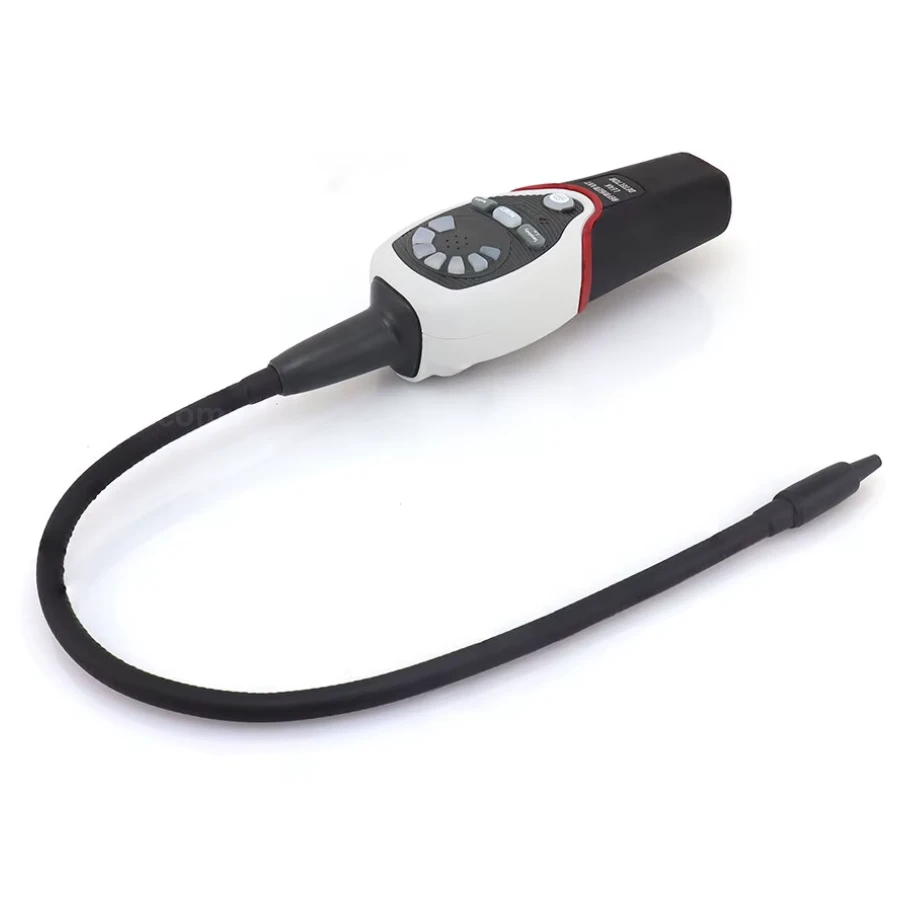

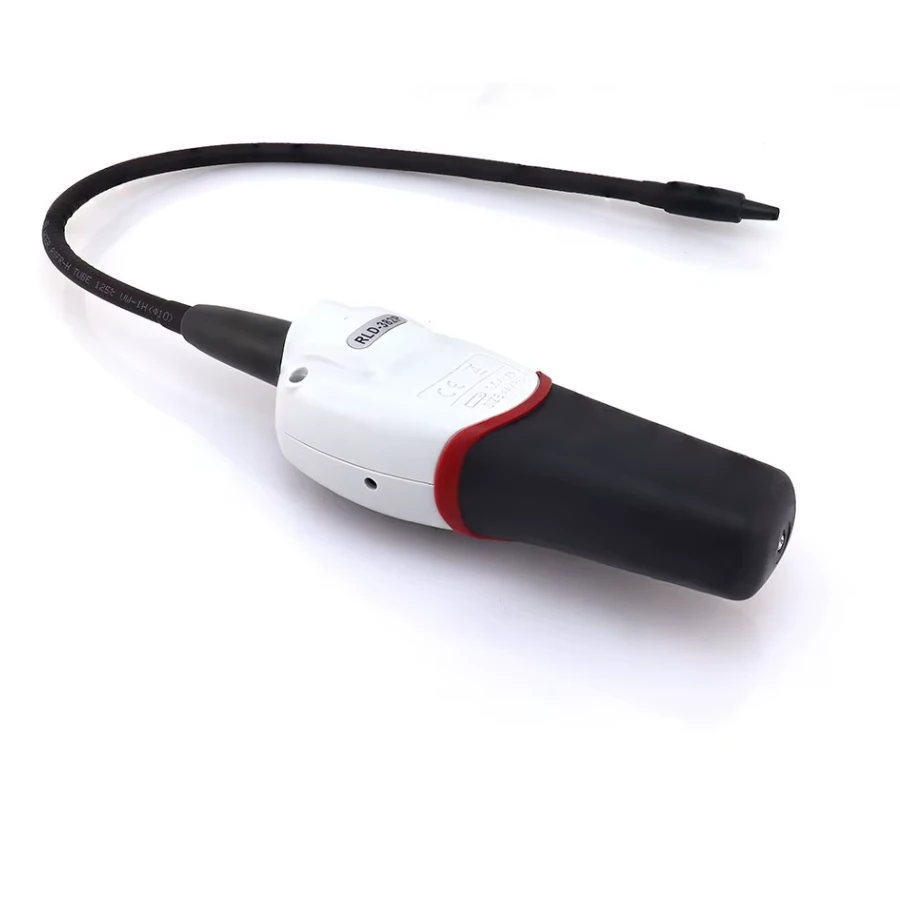

The CENTER 382 is a professional-grade tool designed specifically for the rigorous demands of air-conditioning system maintenance. Building upon the reliable interface of the CENTER 380, the 382 model features a built-in air sucking pump that provides a significantly faster response time and higher sensitivity to trace leaks.

Equipped with a sophisticated microprocessor and advanced digital signal processing, the CENTER 382 utilizes a high-performance semiconductor gas sensor to detect even the smallest leaks down to 3g/year. The intuitive operation interface includes a 7-LED tri-colored visual bar and audible alerts, allowing technicians to pinpoint leaks in complex environments. Whether you are working on automotive systems or heavy industrial cooling, the 400mm flexible stainless snake tube ensures you can reach every connection and valve with ease.

Key Specifications & Special Features

• High Sensitivity: Detects leaks as small as 3g/year.

• Built-in Suction System: Integrated air pump for faster response and maximum sensitivity.

• Universal Detection: Equal sensitivity to CFCs, HCFCs, and HFCs.

• Multi-Gas Support: Detects R-12, R125, R-22, R32, R-134a, R-290, R-404A, R410A, R407C, R-500, R-502, R600A, R1234yf, and more.

• Advanced Control: Microprocessor-controlled with digital signal processing and ambient concentration reset.

• Visual & Audio Indicators: 7 LED tri-colored leak level indicator and variable frequency alarm.

• Flexible Probe: 400mm (15.5") flexible stainless snake tube for hard-to-reach areas.

• Sensitivity Selector: High / Mid / Low sensitivity settings to filter out background noise.

• Certified Quality: Designed in accordance with SAE J1627 and CE standards.

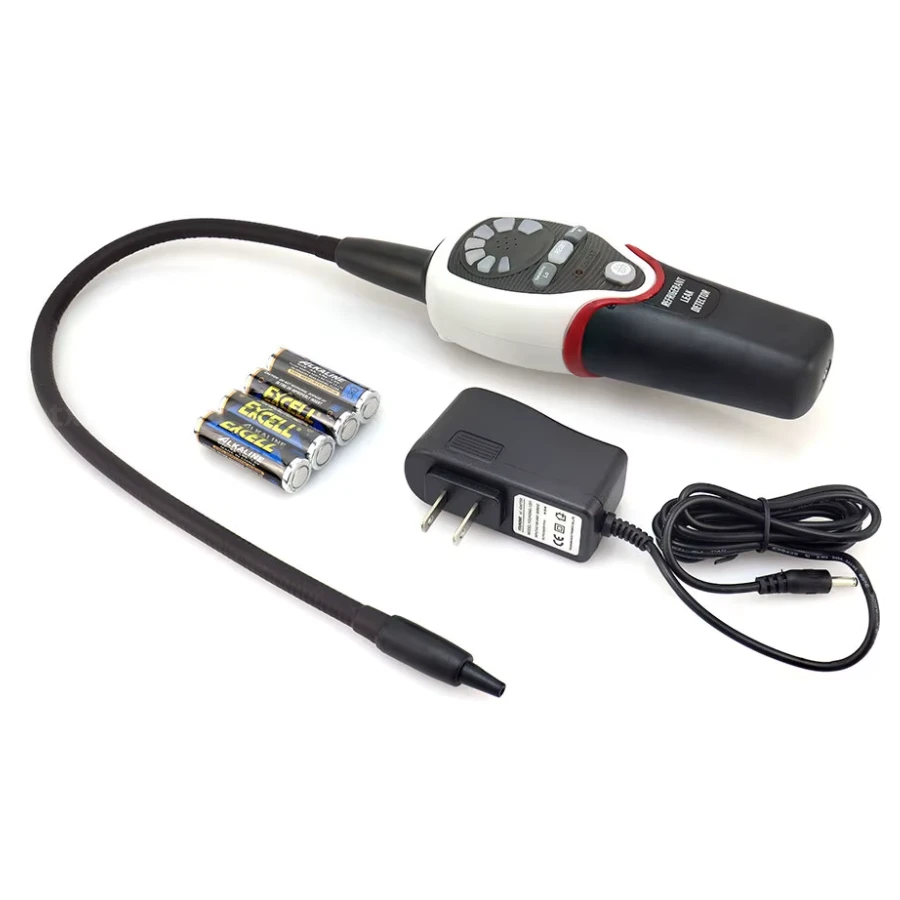

• Included Accessories: Comes with a Reference Leak Source and a Hard Carrying Case.

Professional Applications

• Automotive Air Conditioning: Ideal for R134a and R1234yf system diagnostics.

• Residential & Business Cooling: Perfect for HVAC installation and repair.

• Industrial Cooling: Robust enough for large-scale cold storage maintenance.

• Heat Pumps: Essential tool for heat pump efficiency testing and leak prevention.

Technical Data

• Warm-up Time: 45 seconds

• Response Time: Immediate

• Sensor Life: Over one year

• Auto Power Off: 10 minutes (energy saving)

• Battery Safety: Low battery indication included.
