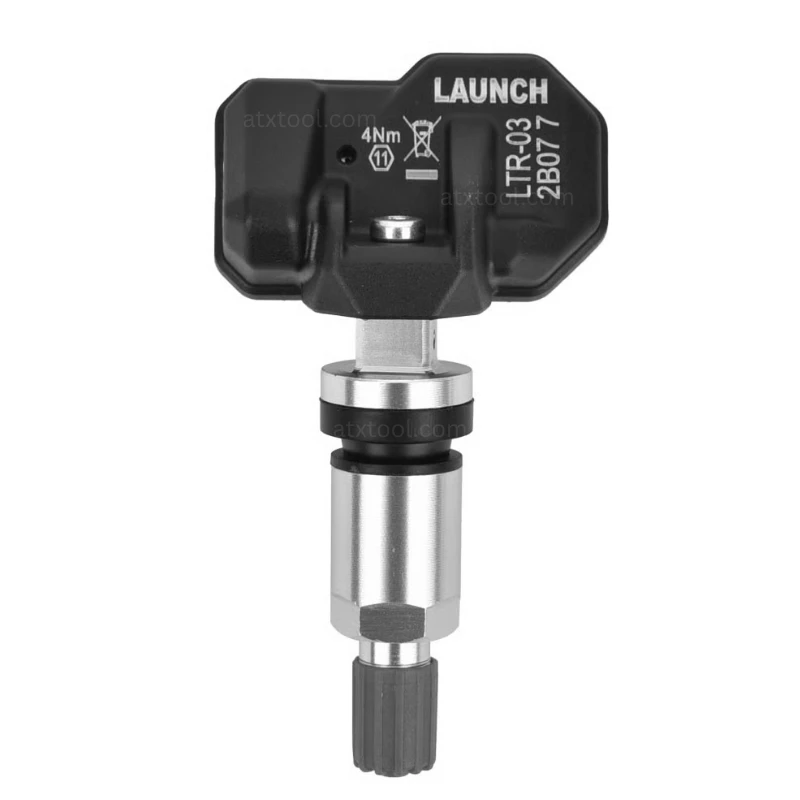

Launch LTR-03 Metal TPMS Sensor – 315MHz & 433MHz 2-in-1 Universal Programmable Sensor

The Launch LTR-03 is a professional 2-in-1 universal programmable TPMS sensor designed to support both 315MHz and 433MHz applications in a single sensor. It is a practical replacement solution for supported original tire pressure monitoring sensors and is suitable for automotive workshops, tire shops, TPMS specialists, and professional technicians.

The LTR-03 features an automotive-grade chip that provides accurate tire pressure measurement, with pressure accuracy of up to 0.1 BAR. Its high-precision air valve is designed to help prevent air leakage while providing reliable performance and durability.

With support for both 315MHz and 433MHz frequencies, the sensor provides wide vehicle coverage and can replace compatible original TPMS sensors. It can also copy original TPMS sensor data and supports unlimited programming for compatible Launch sensor applications.

Key Features

2-in-1 Dual Frequency TPMS Sensor

Supports both 315MHz and 433MHz applications in one sensor.

Universal Programmable Design

Designed as a universal replacement TPMS sensor for supported vehicle applications.

Original Sensor Data Copy

Can copy the original tire pressure sensor data when used with a compatible TPMS programming tool.

Unlimited Reprogramming

Supports unlimited programming for compatible Launch sensor applications.

High-Precision Pressure Measurement

The automotive-grade chip provides pressure measurement accuracy of up to 0.1 BAR.

High-Precision Air Valve

The precision air valve is designed to reduce the possibility of air leakage and provide reliable, stable performance.

Wide Vehicle Coverage

The sensor is designed to cover a wide range of vehicles equipped with compatible TPMS systems. Actual coverage depends on the vehicle model, sensor specification, and programming tool.

Wireless Programming

Supports over-the-air wireless programming when used with compatible Launch TPMS equipment.

Durable Construction

The sensor features a metal construction and is designed for reliable use in automotive applications.

How to Use Launch LTR-03 TPMS Sensor

1. Program the TPMS Sensor

Use a compatible TPMS diagnostic and programming tool to program the LTR-03 sensor according to the vehicle and sensor requirements.

2. Install the Sensor

Install the programmed TPMS sensor inside the tire using the appropriate installation procedure.

3. Install the Tire

After installing the sensor, mount the tire back onto the vehicle.

4. Perform TPMS Learning

Use the vehicle's TPMS learning procedure or a compatible TPMS diagnostic tool to complete the sensor learning process.

5. Confirm Activation

After successful learning, the TPMS system should recognize the sensor and display the appropriate tire pressure information on the vehicle dashboard.

Technical Specifications

Product Name: Launch LTR-03 TPMS Sensor

Manufacturer: Launch

Model: LTR-03

Product Type: Universal Programmable TPMS Sensor

Material: Metal

Condition: New

Operating Frequency: 315MHz / 433MHz

Battery Voltage: 3.0V

RF Transmitter Power: 5–8 dBm

Pressure Accuracy: Up to 0.1 BAR

Working Temperature: -40°C to 125°C

Storage Temperature: -40°C to 125°C

IP Rating: IP67

Product Weight: 45g

Programming: Wireless Programming

Programming Frequency: Unlimited for supported Launch sensor applications

Application: Compatible TPMS-equipped vehicles

Important Compatibility Note

Vehicle coverage and programming functions depend on the vehicle model, year, original TPMS sensor, frequency, and compatible TPMS programming equipment. Please verify compatibility before installation or programming.
