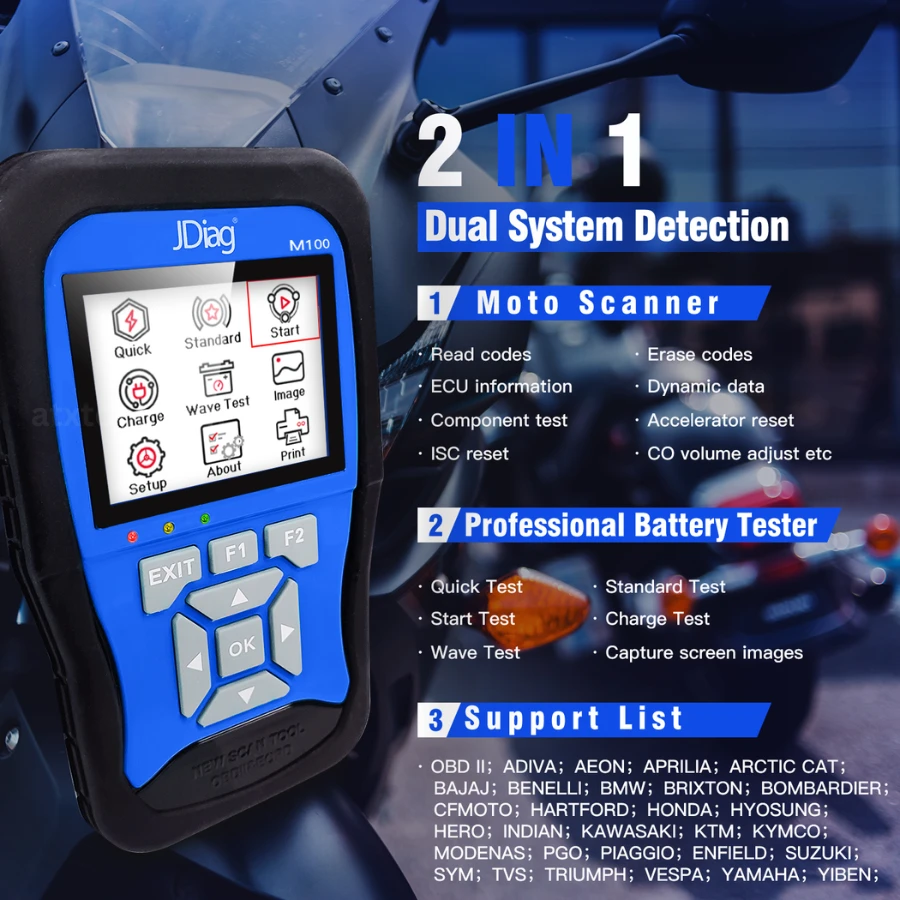

The JDiag M100 (also manufactured as the Topdiag TP100) is a new generation handheld motorcycle diagnostic tool designed to help technicians diagnose problems and perform repairs faster. It covers virtually all major manufacturers' diagnostic functions, with many common procedures built directly into the tool—such as testing injectors, ignition coils, and fuel pumps—so technicians can follow them with ease.

This powerful device allows you to perform factory-level service procedures, including re-setting service lights, encoding keys, unlocking/configuring immobilizers and alarms, making injection adjustments (CO Trimmer), and adjusting the throttle valve position sensor (TPS). It also supports re-setting auto-adaptive parameters and making idling adjustments. The M100 displays live data, ECU information, and reads both stored faults (history) and real-time data (RPM, battery voltage, throttle angle).

With its Lifetime Free Software Updates, you can ensure your tool is always equipped with the latest vehicle models and firmware improvements without any subscription fees.

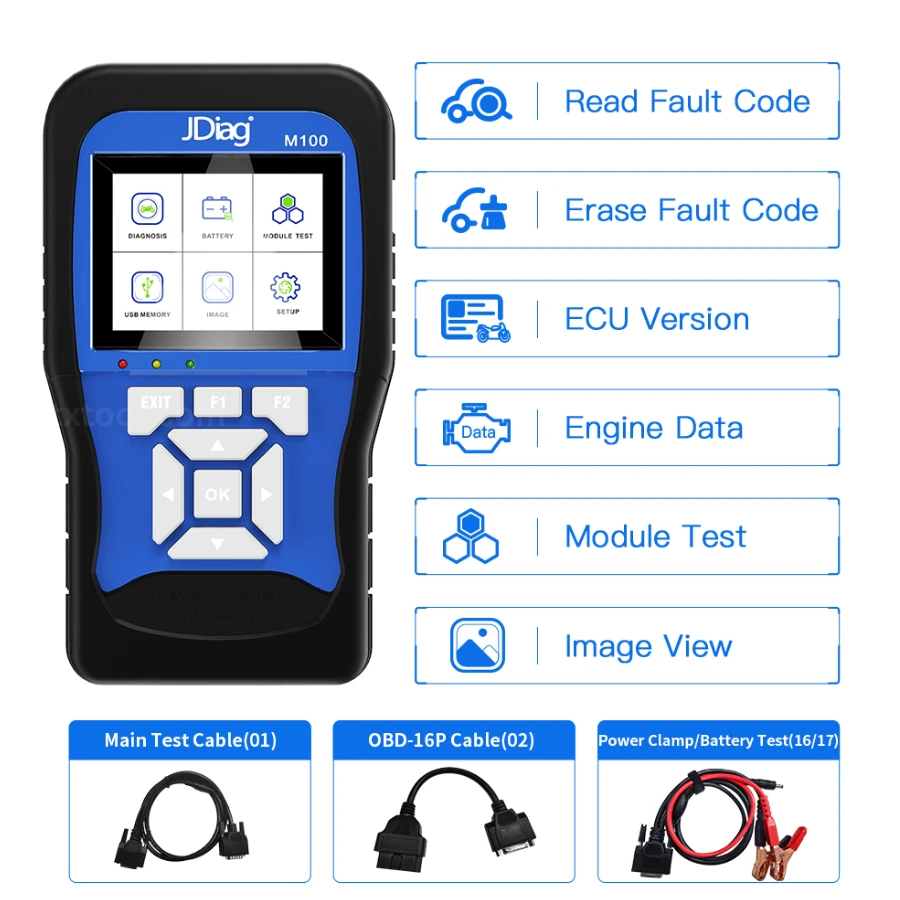

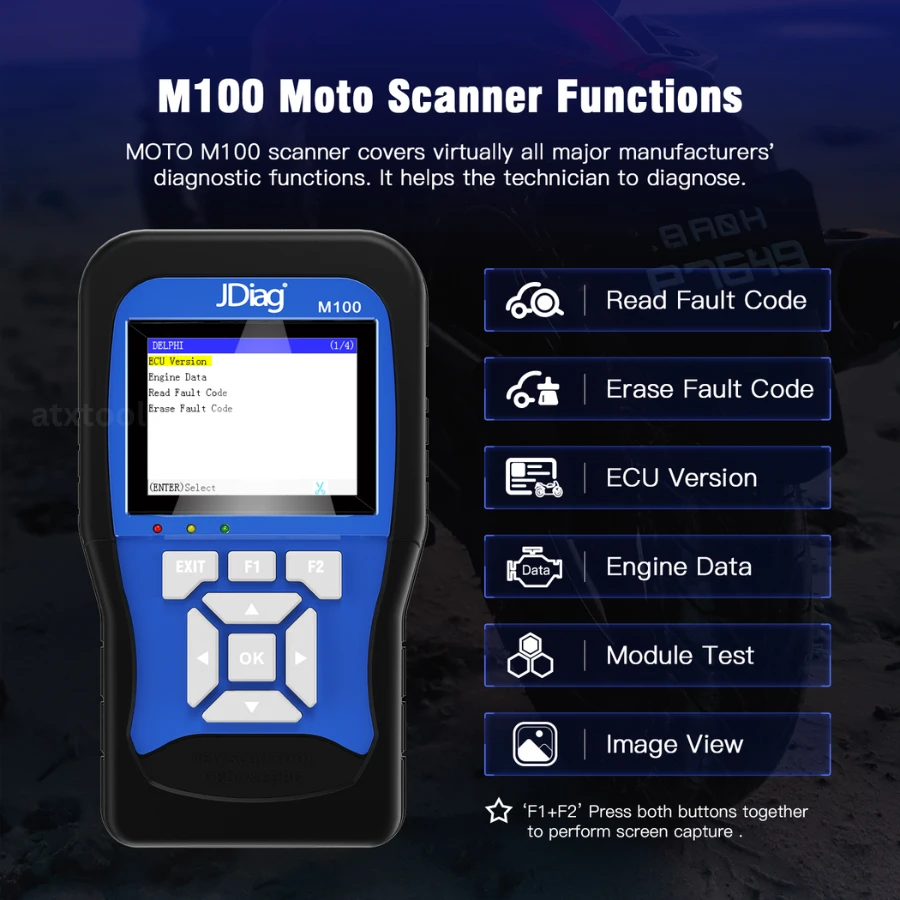

Core Diagnostic Functions

1. Read System Information: Access ECU and hardware details.

2. Read Data Stream: Monitor real-time performance metrics.

3. Read Fault Code: Identify stored and active error codes.

4. Erase Fault Code: Clear codes after repairs are completed.

5. Freeze Data: Capture snapshots of data when a fault occurs.

6. CO Idle Speed Adjustment: Fine-tune engine idling performance.

7. Actuators Test: Test components like injectors and pumps.

8. ABS System Test: Comprehensive diagnostics for braking systems.

9. Troubleshooting Guidance: Step-by-step assistance for repairs.

10. Tire Pressure System Test: Monitor and diagnose TPMS sensors.

11. Anti-theft System Test: Configure alarms and immobilizers.

Global Compatibility & Support

The JDiag M100 is a Global Edition and can be used in every country worldwide. It features a Multi-Language interface supporting: English, Chinese, Thai, Indonesian, Vietnamese, and Spanish.

Supported Motorcycle List:

• OBDII, Aeon, Aprilia, Benelli, Hartford, Honda, Kawasaki, KTM, Kymco, PGO, Piaggio, Suzuki, SYM, Vespa, Yamaha.
