The AUTOOL CT500 is a professional-grade 6-cylinder diagnostic machine designed for the modern automotive workshop. Specifically engineered for GDI, EFI, and FSI systems, it handles high-pressure injectors found in luxury brands like Mercedes-Benz, BMW, Audi, and Porsche. The 2024 edition features a massive 2-liter cleaning tank and 15 advanced simulation modes for total diagnostic accuracy.

2026 Upgrade Features

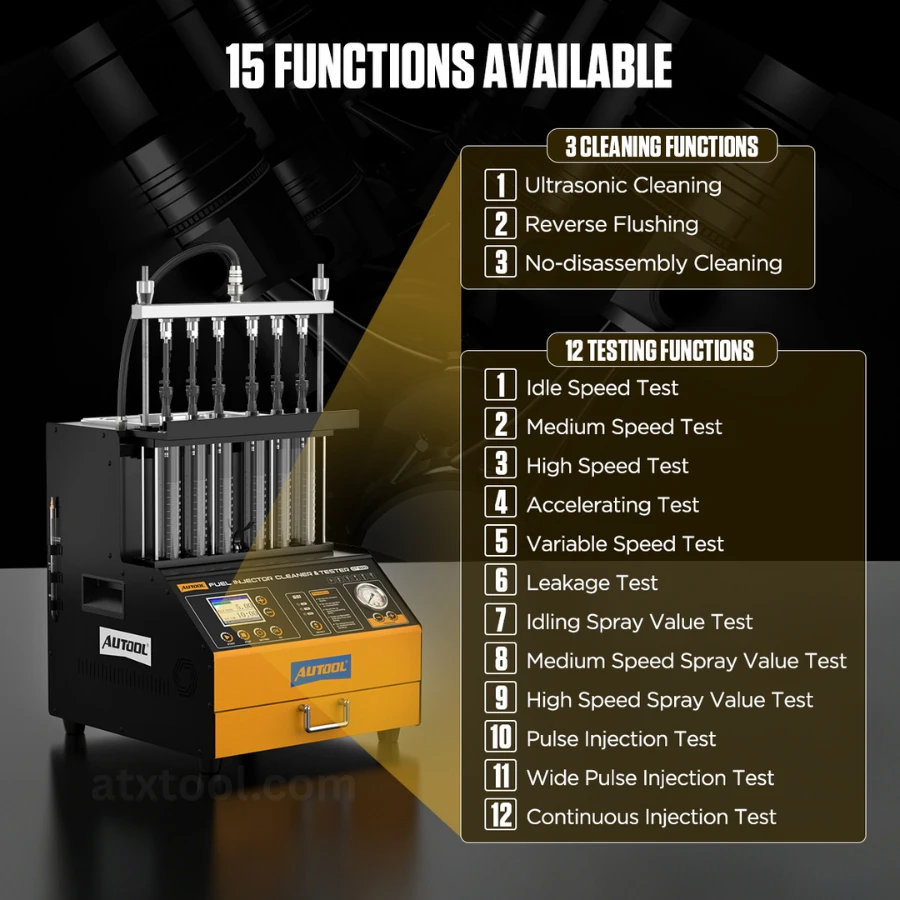

• 15 Professional Functions: Now includes Pulse Injection, Wide Pulse, and Continuous Injection testing for deeper diagnostic insight.

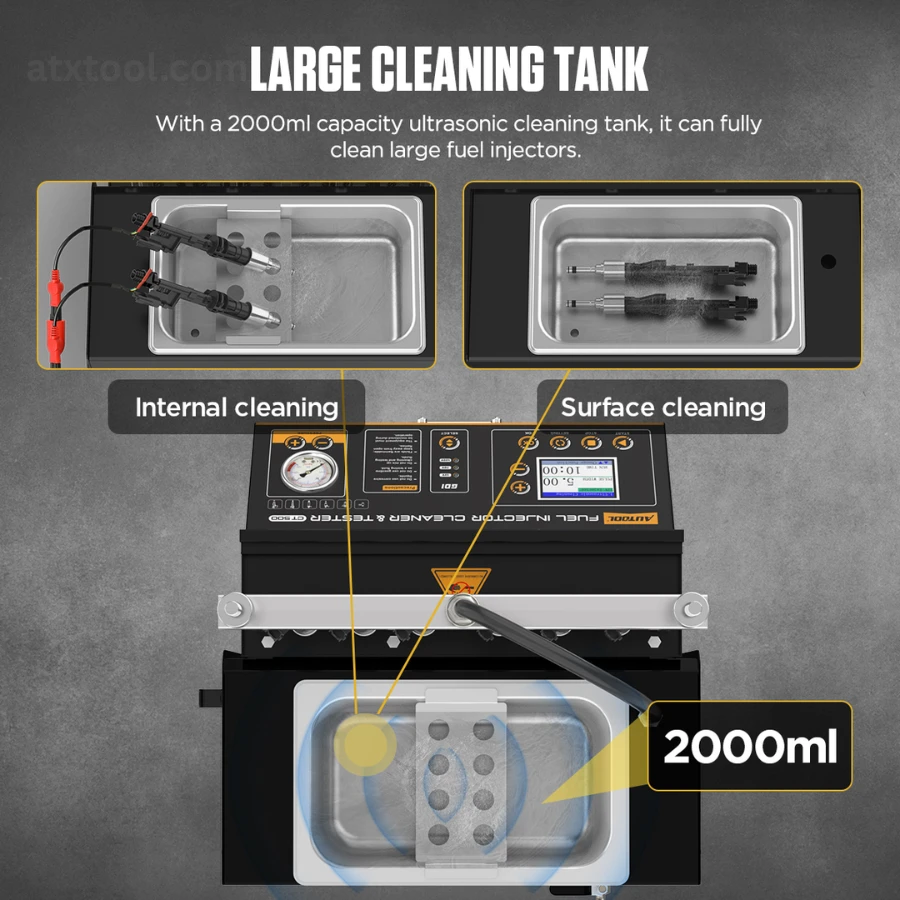

• Massive 2000ML Tank: Extended depth to accommodate longer GDI injectors and provide superior ultrasonic saturation.

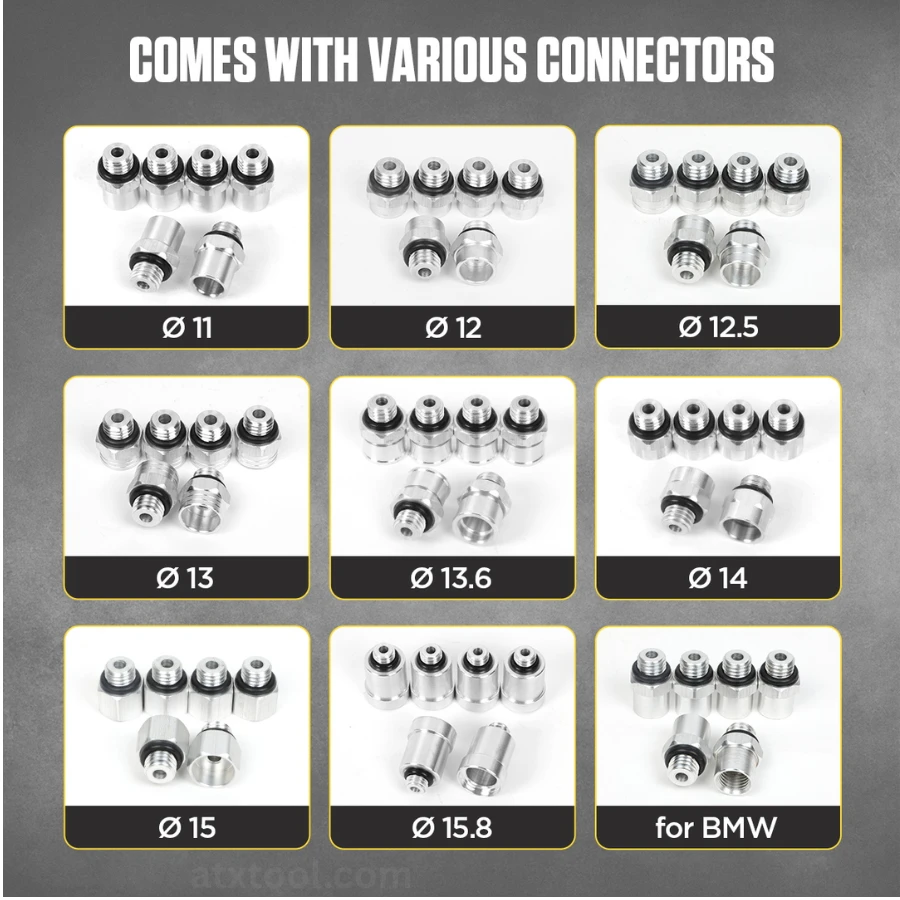

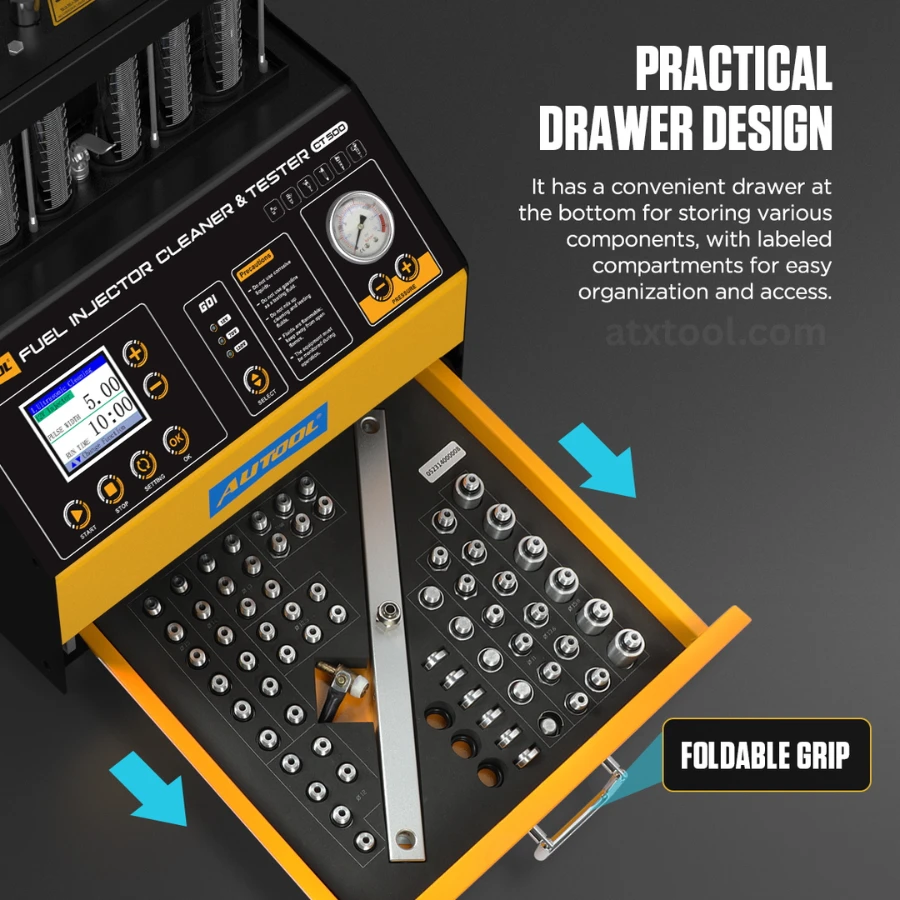

• Smart Drawer Design: Integrated organized storage for adapters and components to ensure a systematic workspace.

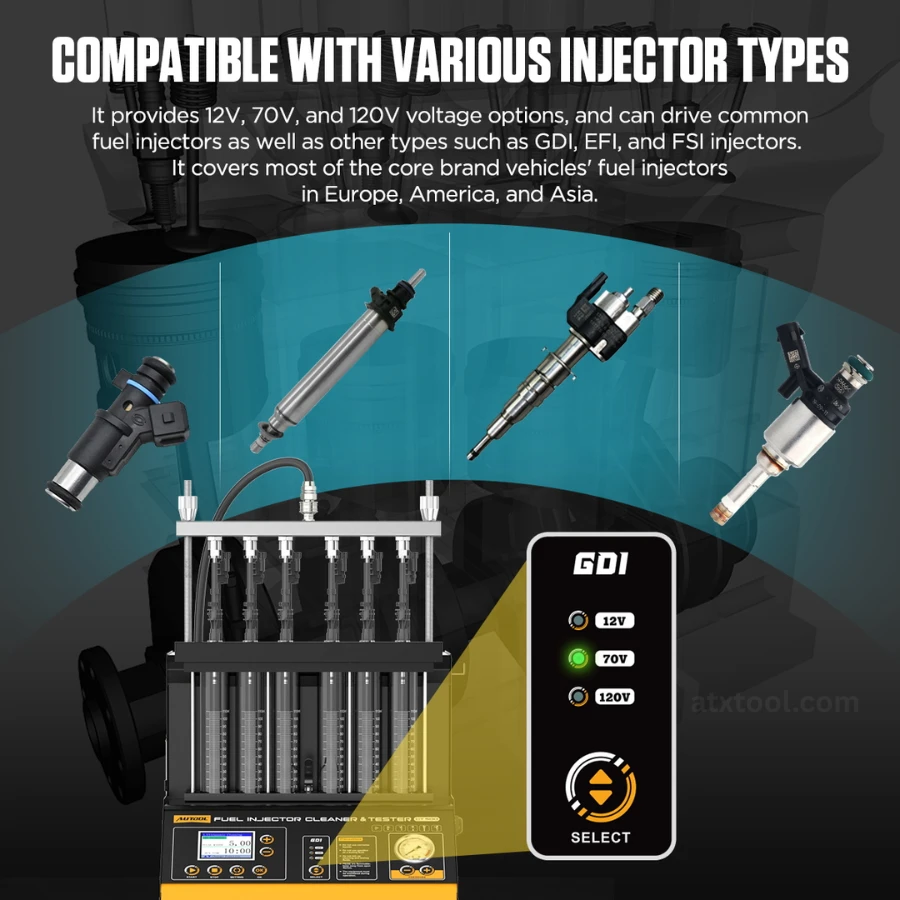

• Tri-Voltage Support: Switch between 12V, 70V, and 120V to match the specific voltage requirements of almost any injector on the market.

Core Diagnostic Functions

Precision Testing Modes

• High-Speed Test (0-4ms): Simulates engine performance at peak RPM.

• Flow Balance Test: Ensures all injectors deliver uniform fuel volume.

• Leak Detection: Detects needle valve tightness under high system pressure.

• Acceleration and Variable Speed: Simulates real-world driving conditions and spray patterns.

• Reverse Flush: Removes internal debris by forcing fluid from outlet to inlet for top-supply injectors.

Superior Cleaning Technology

• 70W Ultrasonic Power: Equipped with a cooling fan and thermal protection for heavy-duty long-cycle cleaning.

• No-Disassembly Cleaning: Support for cleaning injectors directly on the vehicle when using specialized adapters.

 Important Professional Tips

• Fluid Selection: Always use Professional Injector Test Fluid for testing and Engine Carbon Cleaning Fluid for the ultrasonic bath. (Medical alcohol 75%+ can be used as a temporary alternative).

• Dry-Run Warning: Never start the ultrasonic function without fluid in the tank; this will damage the motherboard.

• Diesel Compatibility: This unit is for CLEANING ONLY on diesel injectors. Testing is not supported for diesel.

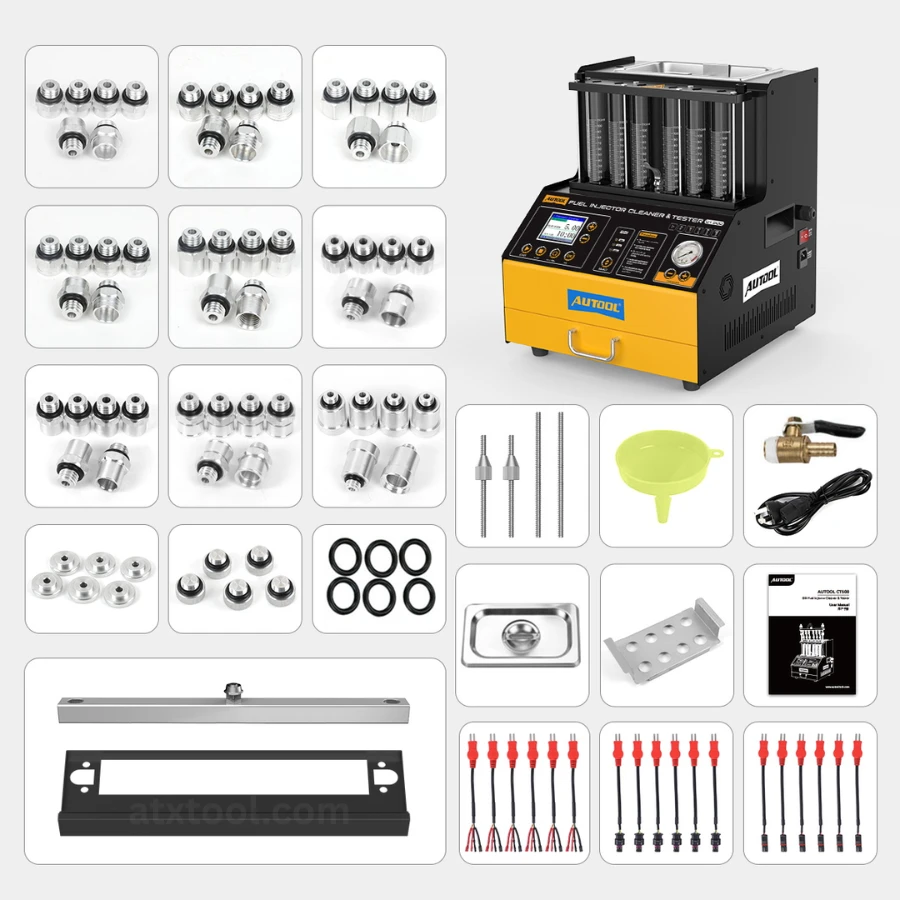

• Single Testing: If testing only one injector, use the 5 included blocking plugs to seal the remaining cylinders.

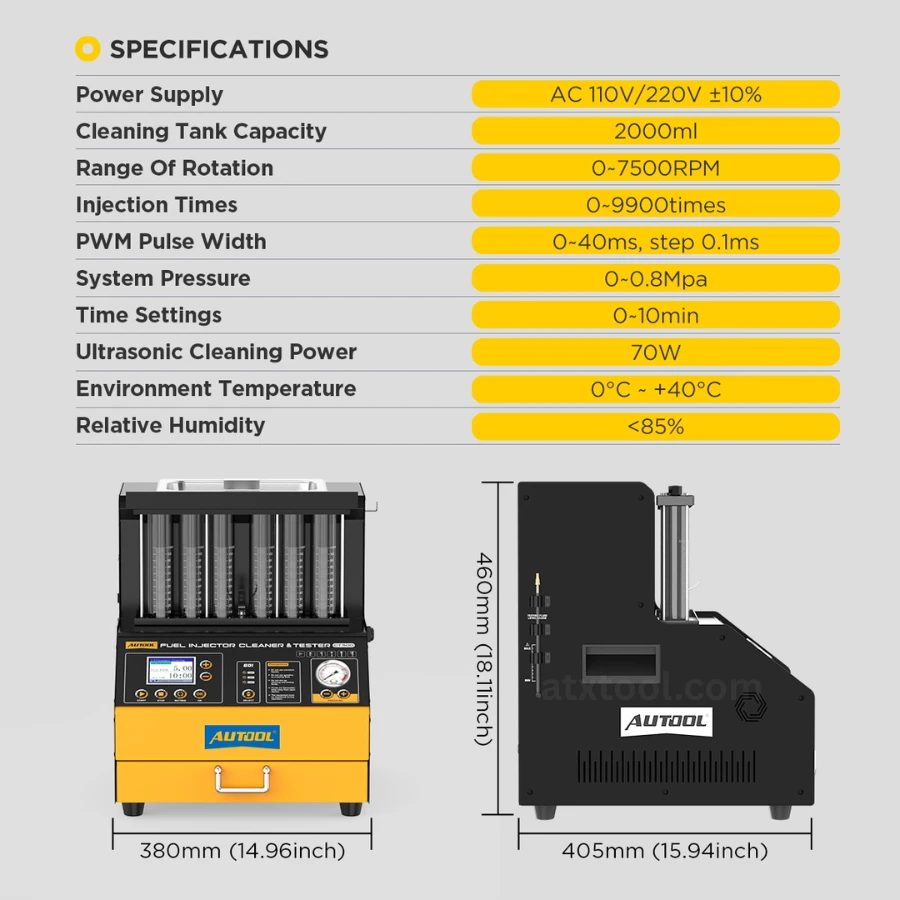

Technical Specifications

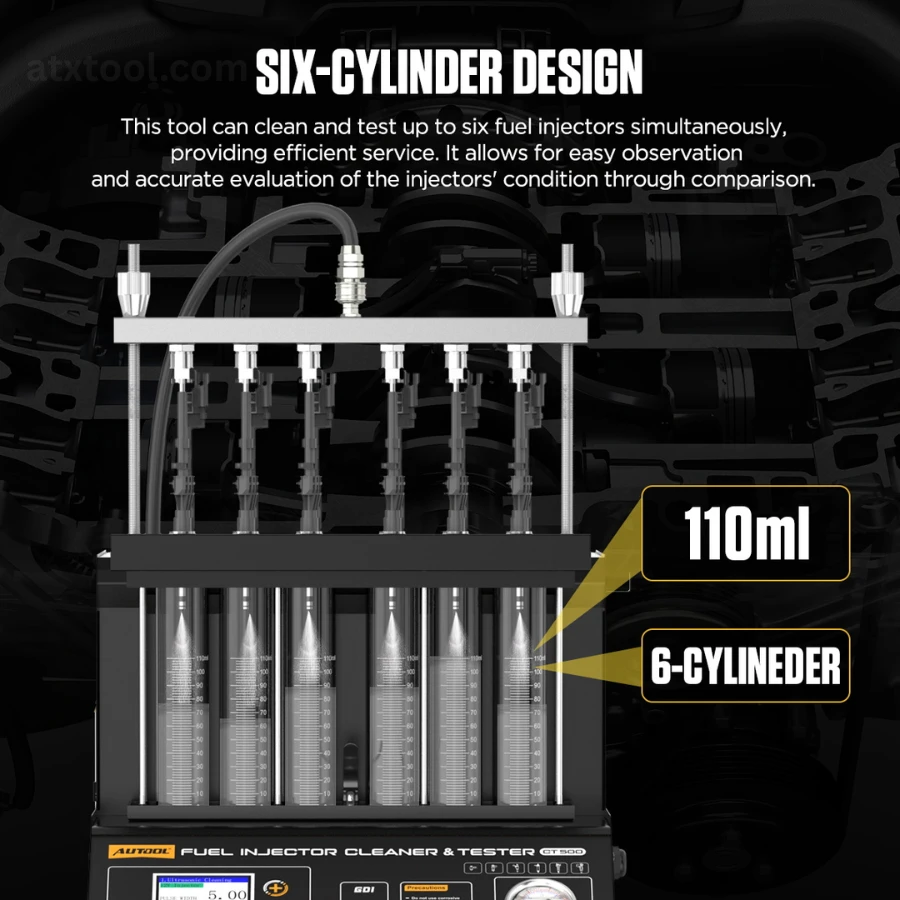

• Cylinder Capacity: 6-Cylinder Simultaneous Testing

• Tank Capacity: 2000ML Extra Large

• Voltage Options: 12V, 70V, 120V

• RPM Range: 0 to 7500 RPM

• Ultrasonic Power: 70W with Thermal Protection

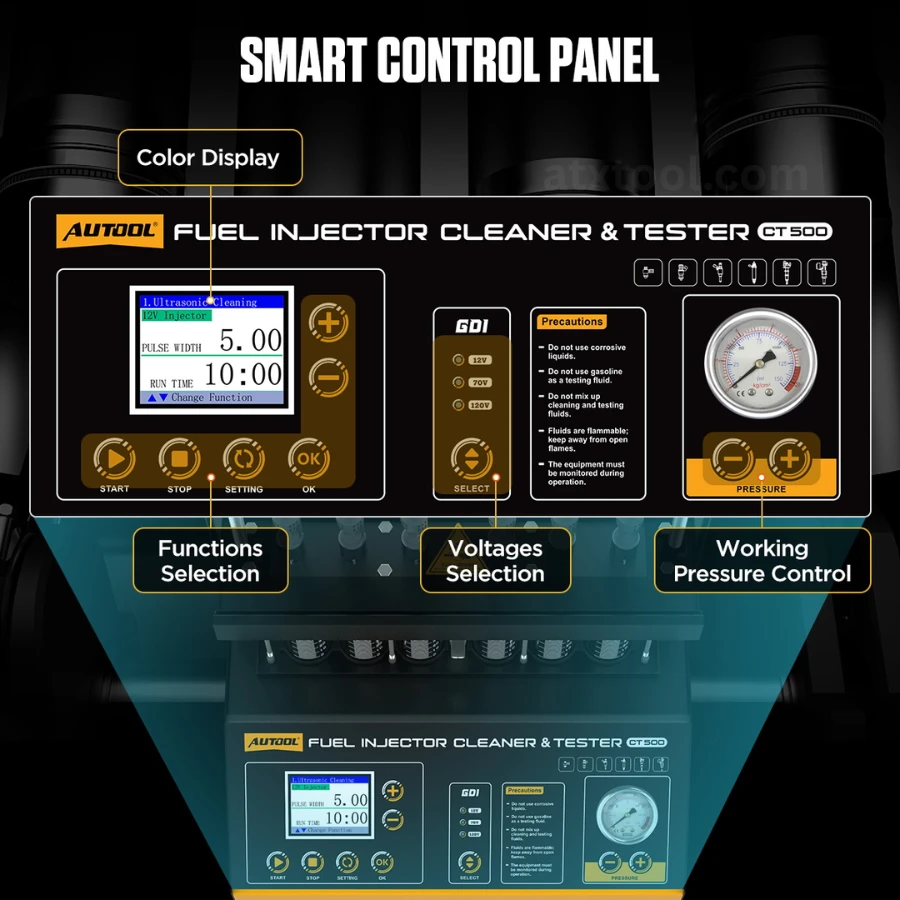

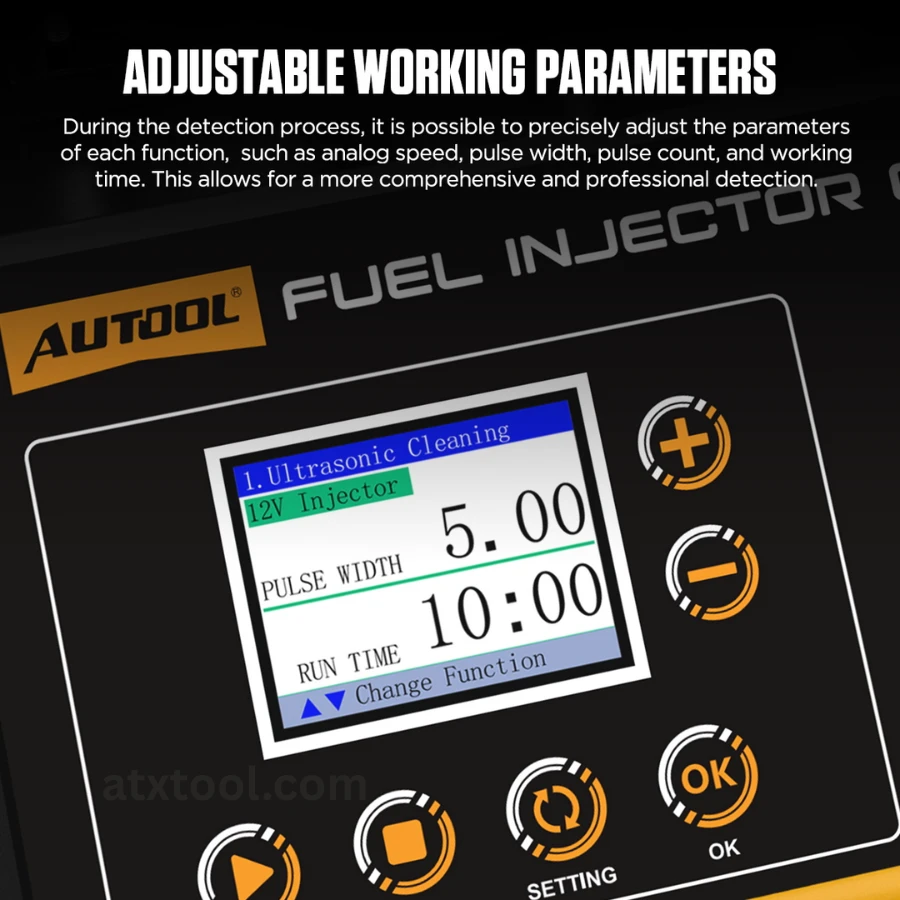

• Display: HD TFT Backlit Color Screen

• Warranty: 3-Year Factory Warranty

Professional Usage Guidelines

• Fluid Selection: Use professional injector test fluid for performance checks and engine carbon cleaning fluid for the ultrasonic bath.

• Dry-Run Protection: Do not start the ultrasonic function without fluid in the tank to avoid damaging the motherboard.

• Diesel Limitation: This unit supports cleaning only for diesel injectors. Testing is not supported for diesel systems.

• Single Cylinder Testing: When testing fewer than six injectors, use the included blocking plugs to seal the remaining cylinders.
