DiagCar AirBag Service FULL PACK – Professional Airbag SRS Diagnostic & Crash Data Repair Solution

The DiagCar AirBag Service FULL PACK is a professional automotive airbag service solution designed for diagnosing SRS (Supplemental Restraint System) modules, reading and writing supported memory data, clearing diagnostic faults, and repairing supported crash data in airbag control units.

This comprehensive package combines the AirBag Service Tool (AST), CarProTool (CPT) programmer with multiple permanent software activations, SmartOBD CAN Tool, dedicated adapters, connecting cables, and supporting accessories. It is designed for automotive electronics specialists and professional workshops working with supported airbag control modules.

With support for more than 16,000 airbag modules across the complete software solution, the system provides multiple operating modes, connection diagrams, part-number searches, and guided workflows to help technicians identify and service supported SRS units.

Key Features and Benefits

• Extensive Airbag Module Coverage: Supports more than 16,000 airbag modules across the software solution.

• Crash Data Repair: Repair supported crash data through the vehicle's OBD2 connection or directly on the bench through the service port, where supported.

• SRS Diagnostics: Read and clear supported diagnostic trouble codes through compatible communication protocols.

• Read and Write Memory Data: Read and write supported module data through CAN, OBD2, service-port, or bench connections, depending on the module.

• Multiple Communication Protocols: Supports CAN, K-Line, GM-LAN, and CAN FD with the required compatible hardware.

• Automatic Mode: Runs supported repair procedures automatically.

• Manual Mode: Allows technicians to select supported operations individually.

• Autodetect Function: Identifies supported modules without manually selecting a part number, where available.

• Part Number Search: Search for supported procedures using module part numbers or label information.

• Integrated Connection Diagrams: Access connection diagrams within the software for supported modules.

• Operation History: Software logs record operation history for reference and troubleshooting.

• Windows Compatibility: Designed for Windows XP, Windows 7, Windows 8, Windows 10, and Windows 11, supporting 32-bit and 64-bit systems as specified by the manufacturer.

• Technical Support: Includes free technical support, software updates, support forum access, and multilingual online helpdesk access, subject to the applicable service terms.

AirBag Service Tool (AST)

The AST software provides functions for working with supported SRS control modules through compatible CAN, K-Line, GM-LAN, OBD2, and bench connections.

Available functions, depending on module and protocol support, include:

• Detecting supported SRS modules without removing them from the vehicle.

• Reading module memory data.

• Writing supported memory data.

• Repairing supported crash data.

• Clearing supported crash data.

• Reading and clearing diagnostic trouble codes.

• Performing supported operations through vehicle OBD2 or bench/service-port connections.

• Using manual and automatic repair modes.

• Accessing connection diagrams within the software.

The AST CAN software supports more than 6,000 SRS units through compatible CAN/OBD2 functions, while the AST dump calculator supports more than 5,000 airbag modules for supported real-time dump calculations and searches by module name or part number.

Actual functions depend on the vehicle, module hardware, processor, communication protocol, and available software driver.

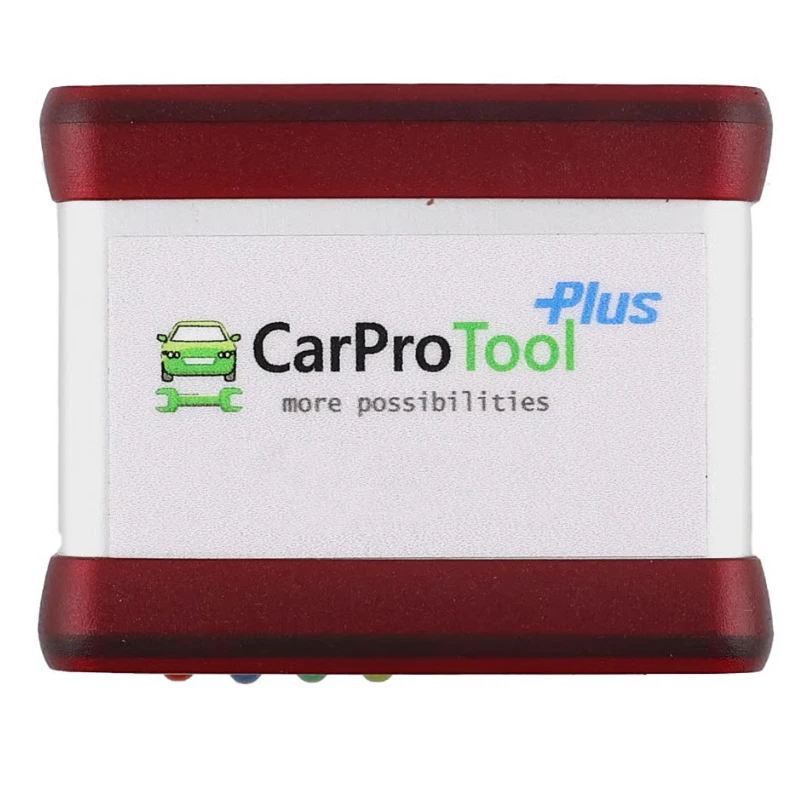

CarProTool (CPT) Programmer and Activations

The package includes a CarProTool programmer with the following permanent software activations:

• Renesas RH850 / RH850Pxx / R7F701x programmer activation.

• Infineon XC2xxx JTAG programmer activation.

• Infineon TriCore TC2xxx programmer activation.

• MPC56 / SPC56 / SC66705 JTAG programmer activation.

• MAC7242 / MAC7241 JTAG programmer activation.

• NEC V850 UART programmer activation.

• EEPROM programmer activation.

These activations support compatible programming operations on supported automotive electronic modules. Compatibility depends on the specific processor, module, connection method, and software version.

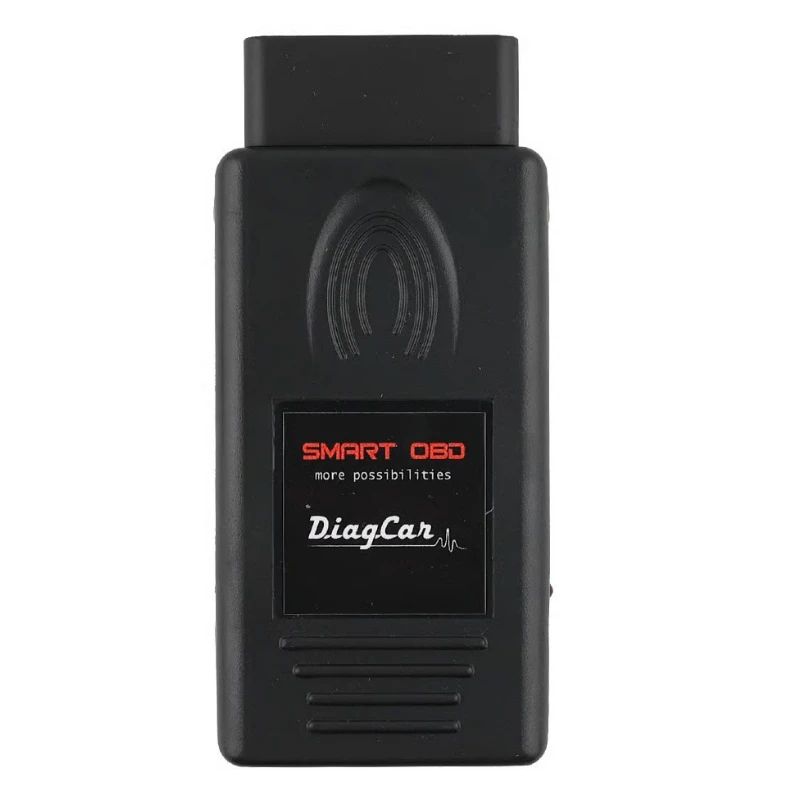

SmartOBD CAN Tool

The package includes the SmartOBD CAN Tool with a dedicated FORD / VOLVO CAN adapter. It is designed for compatible supported operations using the appropriate connections and software.

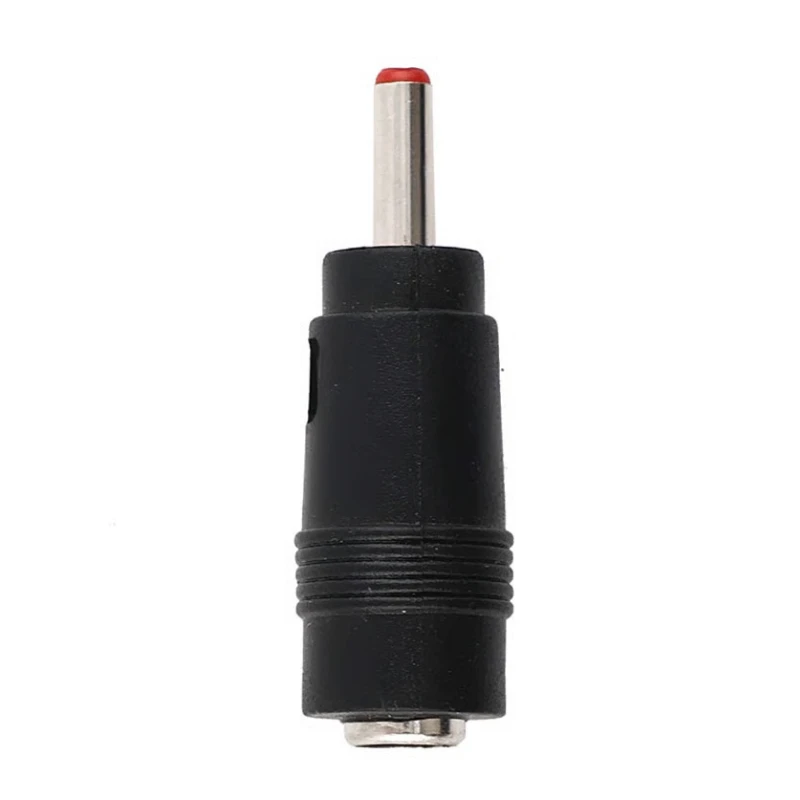

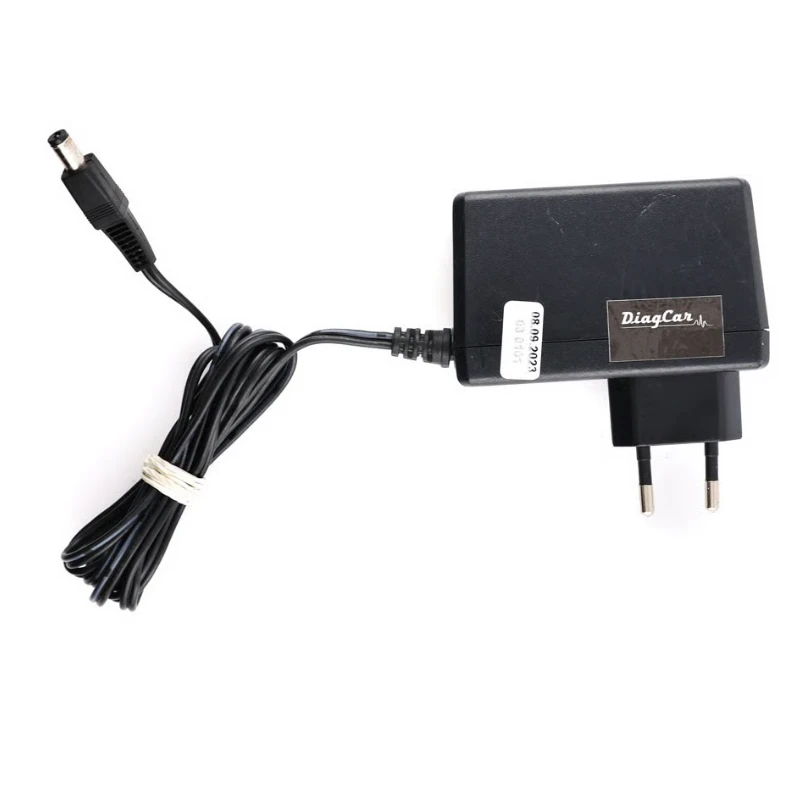

The set also includes a dedicated power supply for SmartOBD and CarProTool. Use the included adapter as required by the manufacturer.

Supported Vehicle Brands

The supplied coverage information lists supported SRS applications for vehicles from the following manufacturers:

BMW, MINI, Mercedes-Benz, Dodge, Buick, Chevrolet, Great Wall, Mitsubishi, Renault, Mazda, Fiat, Ford, Dacia, Nissan, Volvo, Kia, Hyundai, Honda, Subaru, Cadillac, GMC, Opel, Peugeot, Citroën, Tesla, Toyota, Lexus, Infiniti, Jeep, Jaguar, Land Rover, Range Rover, RAM, Volkswagen, SEAT, and Škoda.

Important: Brand inclusion does not mean every model, year, SRS module, processor, or operation is supported. Check the latest official driver list and module coverage before purchasing.

Software Subscription and Support

The package includes a free one-year subscription for:

• AirBag Service Tool (AST).

• AirBag CAN Service Tool.

• AST dump calculator software.

The package also includes one year of Premium support forum status from the order date.

Subscription renewal is advertised from €250, depending on the selected subscription and applicable terms. Available renewal periods are 1 month, 6 months, 1 year, 2 years, and 3 years.

The manufacturer lists free software updates, technical support, support forum access, and multilingual online helpdesk support. Internet access is required for the software.

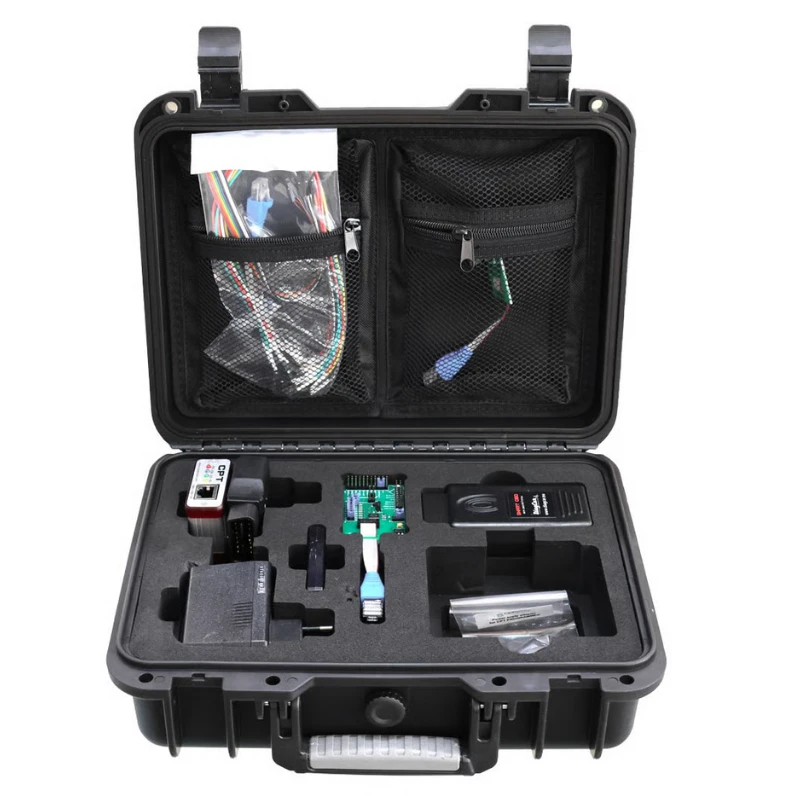

Package Contents

The DiagCar AirBag Service FULL PACK package includes:

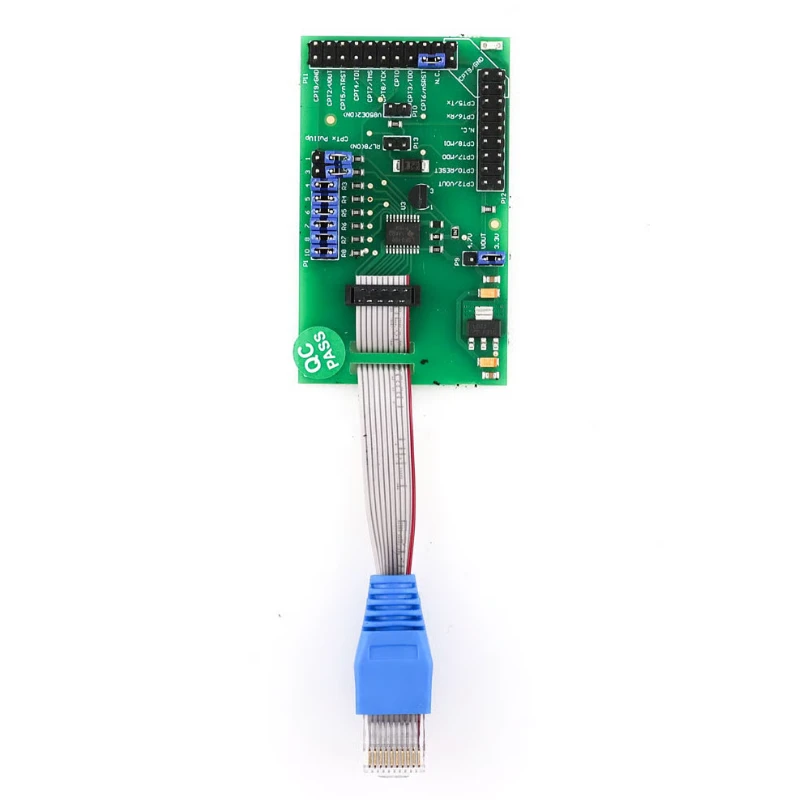

1. CarProTool (CPT) programmer.

2. Renesas RH850 / RH850Pxx / R7F701x activation.

3. Infineon XC2xxx JTAG activation.

4. Infineon TriCore TC2xxx activation.

5. MPC56 / SPC56 / SC66705 JTAG activation.

6. MAC7242 / MAC7241 JTAG activation.

7. NEC V850 UART activation.

8. EEPROM programmer activation.

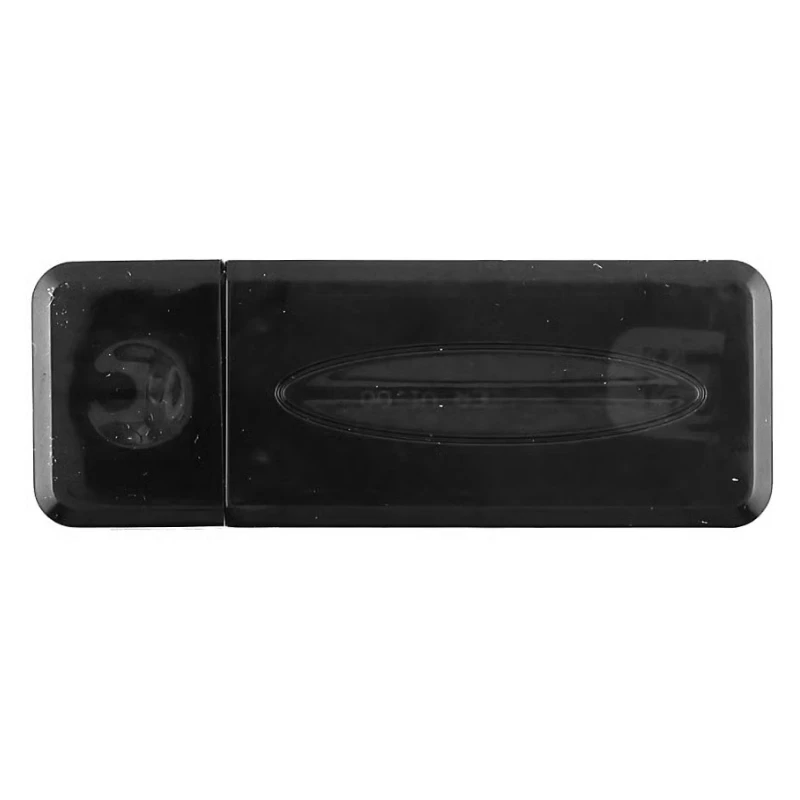

9. AirBag Service Tool (AST) USB key.

10. AST CAN software with a one-year license.

11. AST dump calculator with a one-year license.

12. SmartOBD CAN Tool.

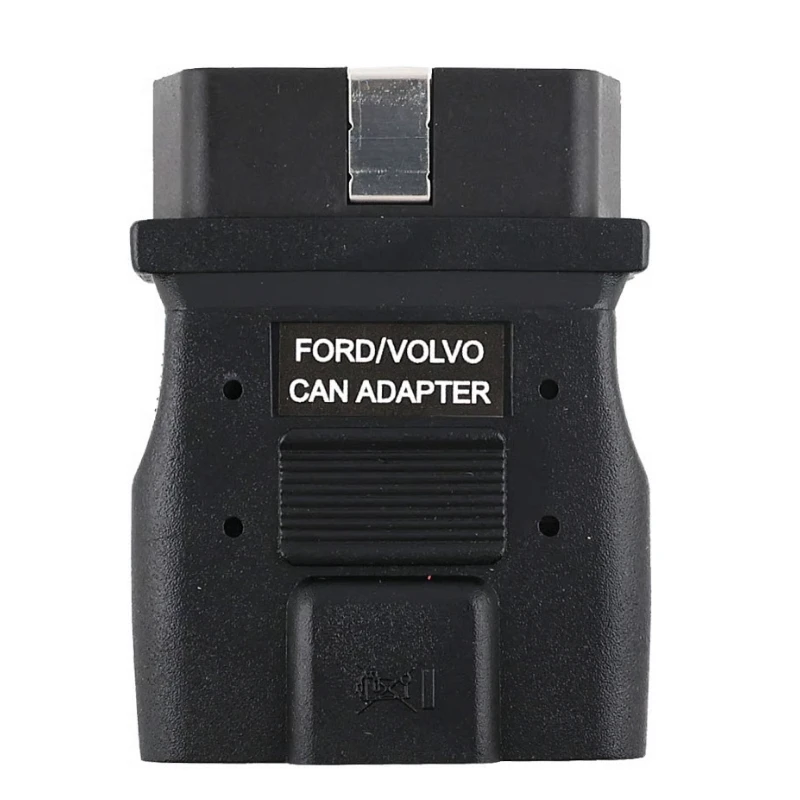

13. FORD / VOLVO CAN adapter.

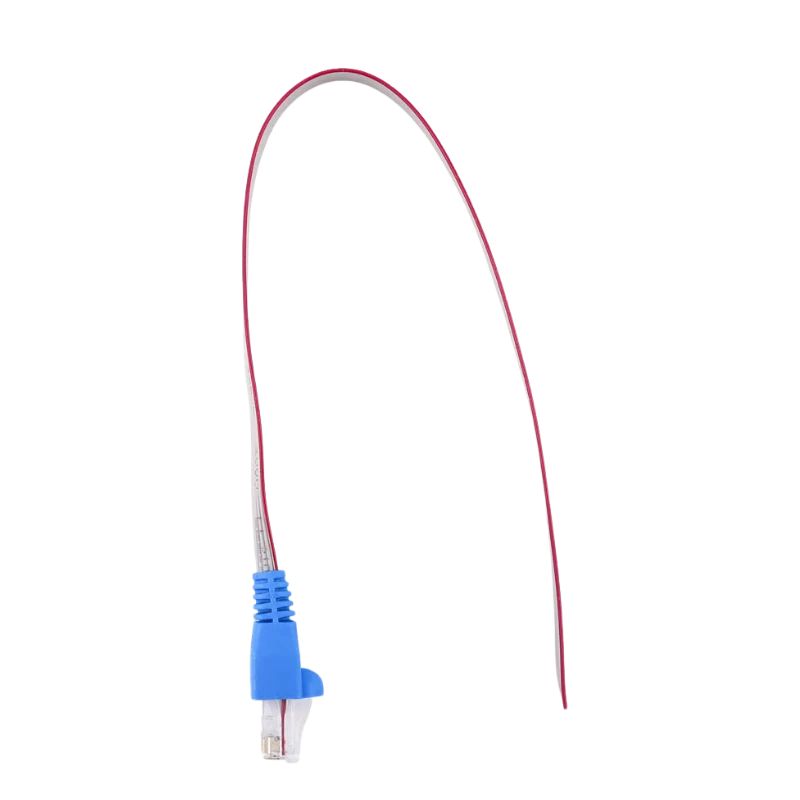

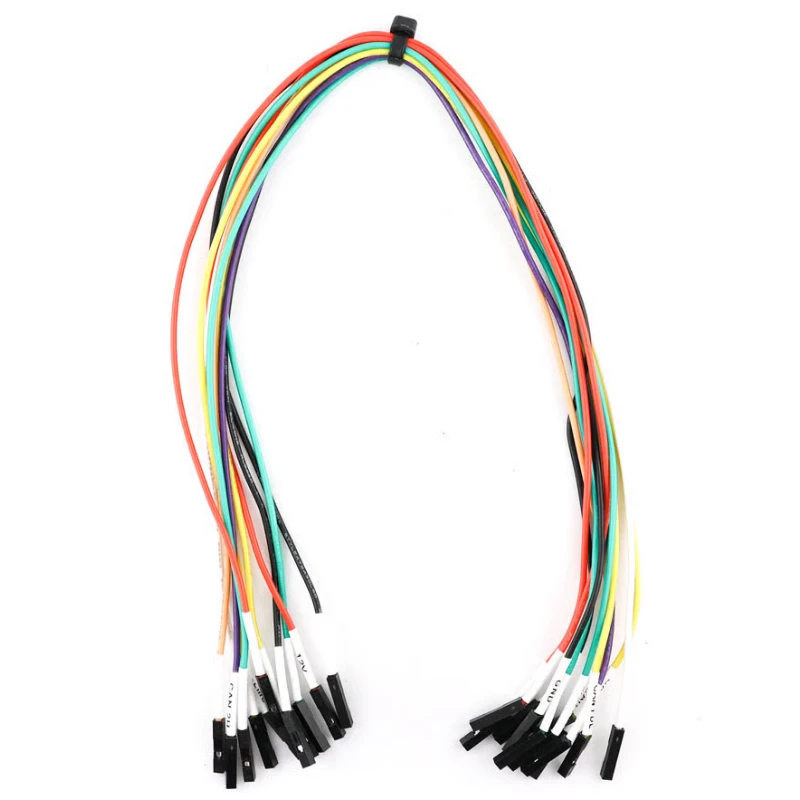

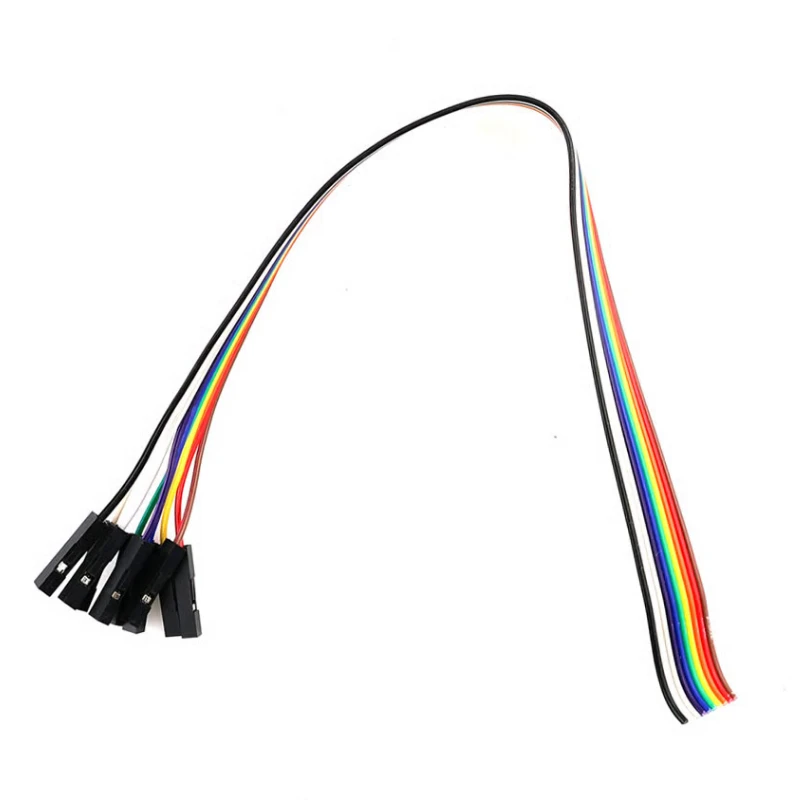

14. Set of connecting cables.

15. Dedicated power supply for SmartOBD and CarProTool.

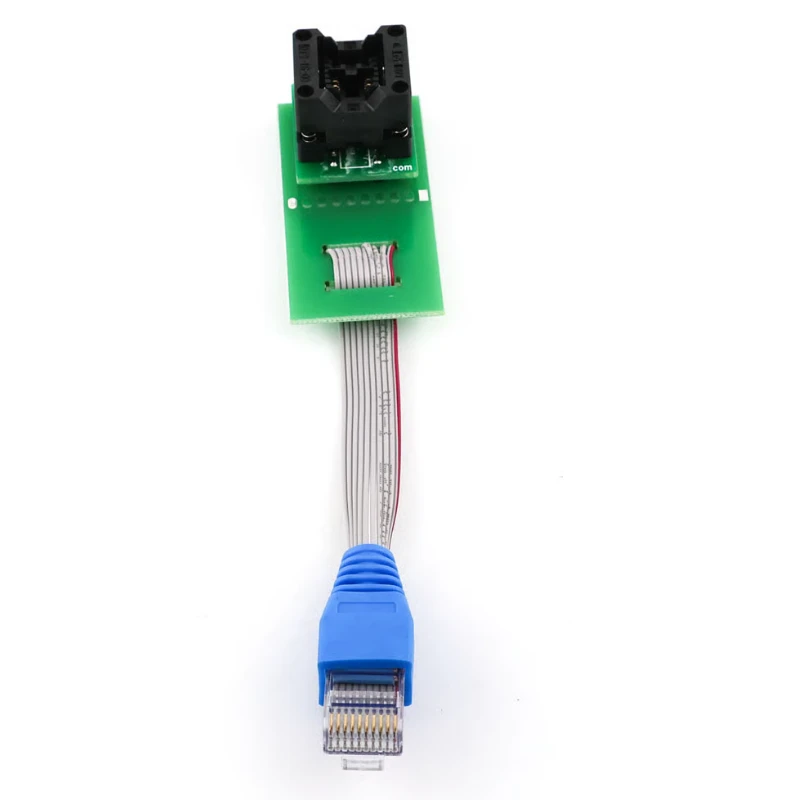

16. SOP8 adapter.

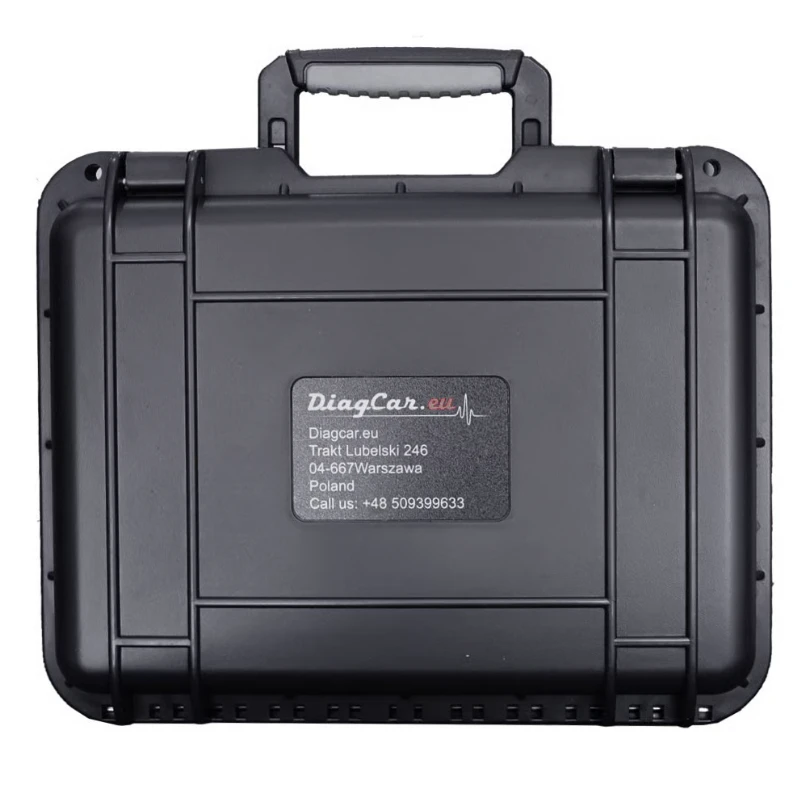

17. AirBag Service Tool carrying case.

18. One year of Premium support forum status.

Permanent programmer activations are included as specified in the package details. AST software subscriptions are provided for one year; these are separate from permanent programmer activations.

Technical Specifications

• Product: DiagCar AirBag Service FULL PACK

• Product Weight: Approximately 2,600 g

• Supported Operating Systems: Windows XP / 7 / 8 / 10 / 11

• Operating System Architecture: 32-bit and 64-bit

• Communication Protocols: CAN, K-Line, GM-LAN, CAN FD with compatible adapter

• Connection Methods: OBD2, supported service-port and bench connections

• Internet Connection: Required

• AST Subscription: 1 year included

• AST Dump Calculator Subscription: 1 year included

• Premium Forum Status: 1 year included

Who Is This Tool For?

This solution is intended for automotive electronics professionals, airbag repair specialists, ECU and module technicians, and workshops that service supported SRS control units.

Before purchasing, verify compatibility with your target vehicle, SRS module part number, processor, and intended repair operation using the manufacturer's latest official coverage list.
